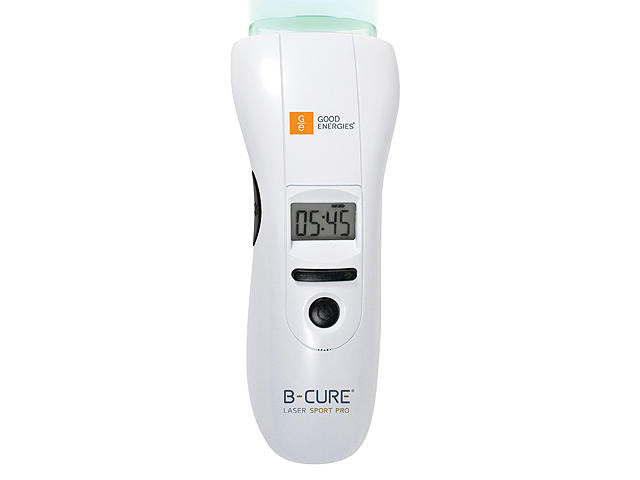

B-Cure Laser SPORT Pro softlaser (LLLT)

Operating Principle and Technology

The B-Cure Laser Sport Pro operates with a GaAIAs (gallium-aluminum-arsenide) solid-state laser diode emitting infrared laser light at 808 nanometers wavelength.

This specially calibrated laser beam works at a maximum power of 250 mW and a 13 kHz pulse frequency, optimal for tissue regeneration and pain relief.

The device delivers 5.0 joules of energy per minute to the treated area, scientifically proven to stimulate cells' natural healing processes effectively.

Applications

Orthopedic Applications

The B-Cure Laser Sport Pro is effective in treating various musculoskeletal issues. It is successfully used for chronic back and lower back pain with treatments performed longitudinally along the spine. For neck pain, therapy can be applied both beside the vertebrae and on the lateral sides of the neck.

Joint Problems

The device is excellent for managing joint pain.

It can be used on any joint, such as different points of the knee (behind in the crease, as well as on the outer and inner sides). For shoulder joint problems, alongside direct treatment of painful areas, surrounding tissues can also be treated for better effectiveness.

Special Conditions

The device is effective for specific conditions such as carpal tunnel syndrome, allowing combined treatments on different directions of the internal wrist side. In fibromyalgia and myofascial pain syndrome, targeted treatment of painful areas can be performed.

Diseases Treatable with Softlaser

Musculoskeletal Origin Diseases

• Fresh and chronic pain of bones, joints, and tissues
• Joint capsule and partial ligament tears
• Lower back, dorsal, cervical, and other muscle pains
• Lumbago and pain caused by herniated discs
• Knee, hip, shoulder, hand and toe joint pain and osteoarthritis
• Rheumatic pain (Rheumatoid arthritis) and/or chronic tendinitis
• Overuse tendon, tendon sheath, and muscle inflammations
• Heel bone spurs and sprains
• Tennis and golf elbow
• Achilles tendon inflammation, wrist tendon sheath inflammation
• Carpal tunnel syndrome (wrist pain)
• Myofascial pain syndrome

Skin Conditions

• Wound healing stimulation
• Hard-to-heal wounds and ulcers
• Diabetic ulcers
• Acne-prone skin
• Fresh scars and burns
• Scar improvement and scar pain relief
• Promotes better and more aesthetic healing of surgical scars
• Cold sores, shingles
• Eczema

Dental Complaints

• Gum and tooth root inflammation
• Any oral mucosa inflammation
• Post tooth extraction or dental surgery inflammation reduction and healing stimulation
• Treatment of temporomandibular joint inflammation and pain

Maintenance and Care

The device requires minimal maintenance, but to ensure long lifespan, some basic rules must be followed. Regularly clean the laser beam exit opening with 70% alcohol solution, especially if the device is shared between users. During cleaning, avoid wetting the lens. Store the device in a dry, cool place, protected from direct sunlight and extreme temperatures.

Safety and Contraindications

The B-Cure Laser Sport Pro is extremely safe, with virtually no contraindications. However, some important safety guidelines must be observed:

• Do not direct the laser beam into the eyes
• Not to be used on the abdominal area during pregnancy
• Not to be used around active malignant tumors
• Treatment must be performed directly on the skin surface

Technical Specifications

• Laser type: GaAIAs solid-state laser diode
• Maximum power: 250 mW
• Wavelength: 808 nm (infrared)
• Pulse frequency: 10.9 kHz
• Laser pulse duration: 31.5 μs
• Diode life: 1000 hours
• Energy delivered per minute: 5.0 joule

The device features practical usage parameters:

• Timer setting range: 00:00 - 99:30 minutes
• LCD display size: 26 x 15 mm
• Power supply: 3 x AAA rechargeable batteries
• Battery operating time: 2 hours at full charge
• Charging time: 5-7 hours
• Operating temperature: 0°C - 40°C
• Humidity tolerance: 15-90% (non-condensing)

The device is compact and portable:

• Dimensions: 200 x 70 x 40 mm
• Weight: 175 grams
• Laser beam size at the opening: 45 x 10 mm
