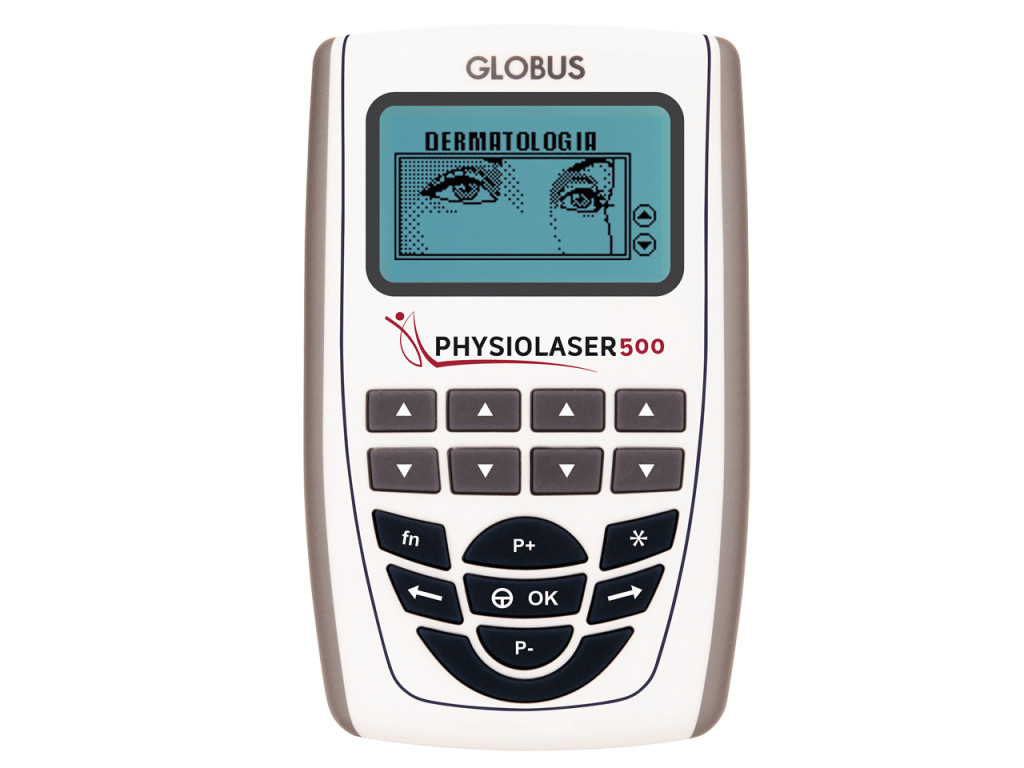

PhysioLaser 500 softlaser (LLLT)

The Physiolaser 500 is a modern, effective laser therapy unit specially developed for physiotherapy and podiatric treatments.

This CE-certified, class IIb medical device offers a reliable solution for treating various musculoskeletal system issues. It is especially suitable for professionals working in rehabilitation medicine, sports medicine, and orthopedics.

Technical specifications and performance

The "heart" of the Physiolaser 500 is a state-of-the-art GaAlAs diode operating at a wavelength of 808 nm ±10 nm. The device's maximum RMS power is 0.5 W ±20%, which can be precisely controlled for different treatment protocols.

The device features an 11 mm optical focus point, providing a 0.95 cm² treatment area. The beam divergence is only 0.23°, allowing accurate and efficient energy transfer.

Treatment modes and flexibility

The Physiolaser 500 can be used in two different modes: continuous and pulsed. In pulsed mode, the frequency can be set between 1 and 10,000 Hz, enabling personalized treatments.

The device includes a 660 nm, 100mW laser aiming beam (Class I laser) that helps precise targeting during treatment.

Safety and protection

Safety was a key focus in the device's design. The Physiolaser 500 has an automatic power limiting system (APL) that protects the device from overheating and ensures treatment effectiveness.

During use, both the operator and patient must wear special protective glasses that provide full protection against laser radiation.

Therapeutic applications

The Physiolaser 500 offers a wide range of healthcare applications.

The device is particularly effective in treating arthrosis, ankle sprains, knee pain, shoulder and neck pain, and various tendon problems. Its anti-inflammatory, edema-reducing, and pain relief effects are scientifically proven.

Aesthetic treatments

Besides healthcare applications, the Physiolaser 500 is also suitable for aesthetic treatments.

The device is effectively used for wrinkles, acne, dehydrated skin, and skin rejuvenation. Other applications include treatment of stretch marks, cellulite, and various other skin concerns.

14 predefined treatment programs

• Health and rehabilitation
  • Arthrosis
  • Ankle sprain
  • Knee pain
  • Edema caused by ankle sprain
  • Shoulder joint pain
  • Epicondylitis (tennis and golfer's elbow)
  • Chronic back pain
  • Neck pain
  • Tendinopathy (tendon degeneration)
• Beauty and Fitness
  • Stretch marks on the breast
  • Edematous cellulite on thighs, hips, buttocks
  • Other cellulite
  • Treatment of stretch marks on the body
  • Wounds, scars

Ergonomic design and usability

The device features compact dimensions (160 x 99 x 35.4 mm) and weighs only 440 grams, ensuring comfortable use. Encased in food-grade ABS housing, the device has IP20 protection.

The high-contrast display and intuitive user interface facilitate easy operation.

Power supply and mobility

The Physiolaser 500 has dual power supply: it can be used both via mains and battery.

The built-in 7.2V 1.8Ah Ni-MH battery provides long operating time, which is particularly useful for mobile treatments. The device features automatic energy-saving functions and indicates the battery charge level.

Programmability and customization

The device offers numerous pre-programmed treatment protocols but also allows creation and storage of custom programs. Treatment parameters such as power, frequency, and treatment time can be easily adjusted to meet individual patient needs.

The Physiolaser 500 is a versatile, modern laser therapy device that combines efficiency, safety, and user-friendly design. It is an ideal choice for clinics, surgeries, and rehabilitation centers where reliable and professional treatment options are essential. Due to its wide range of applications, precise controllability, and ergonomic design, it is an excellent tool for healthcare professionals.
