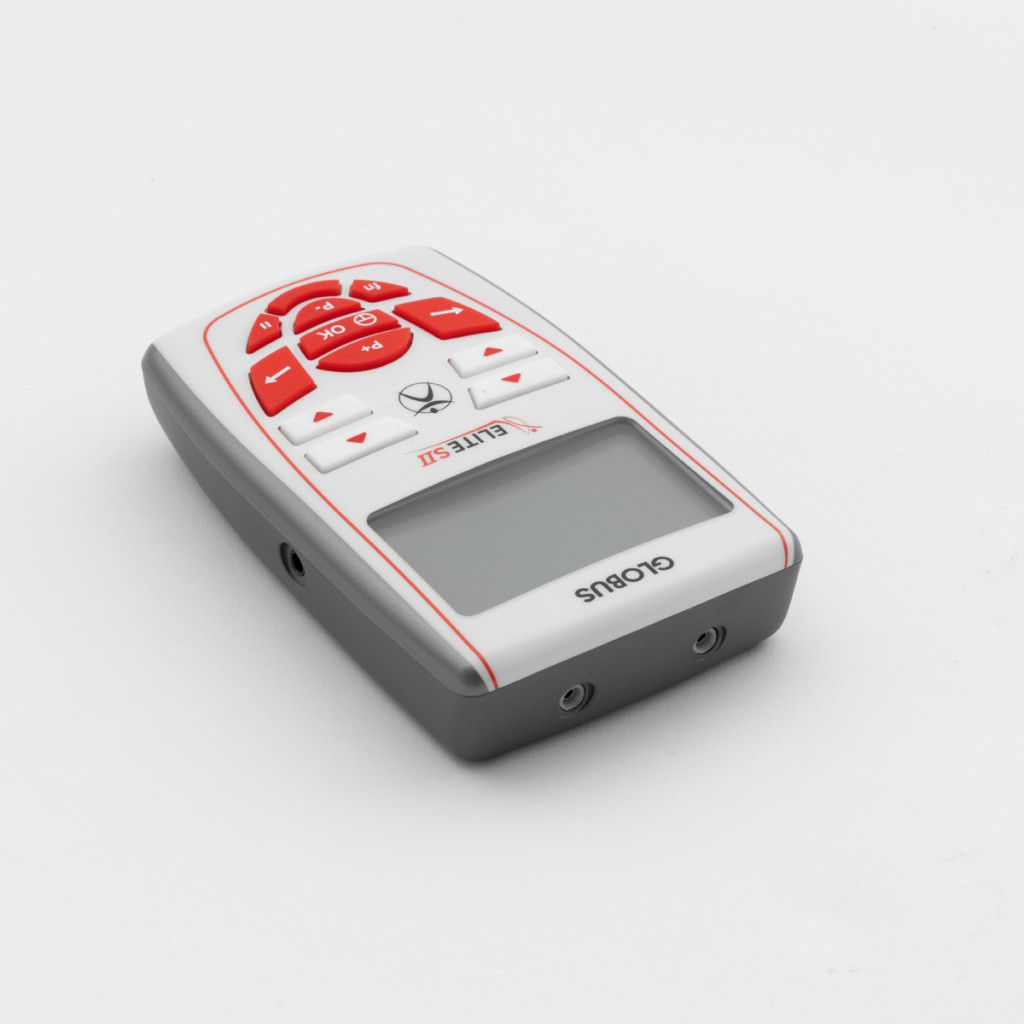

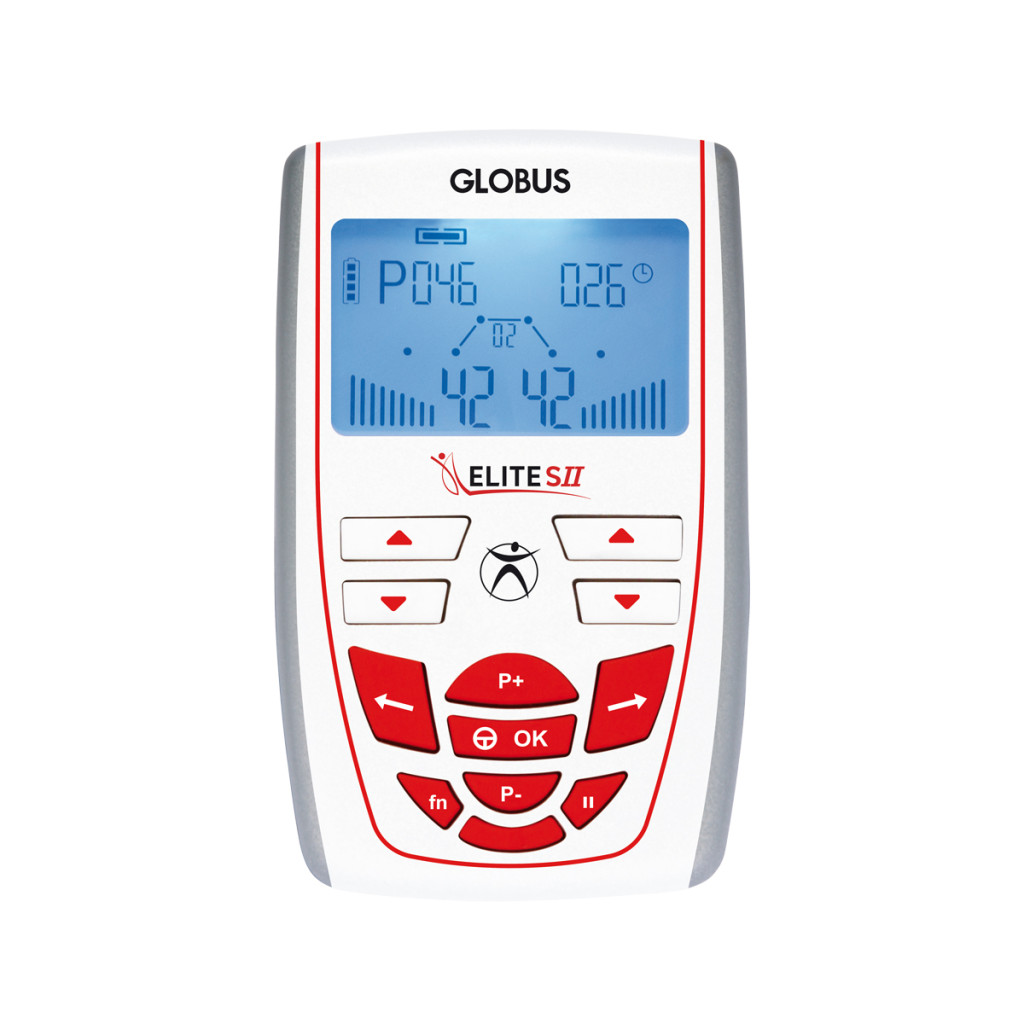

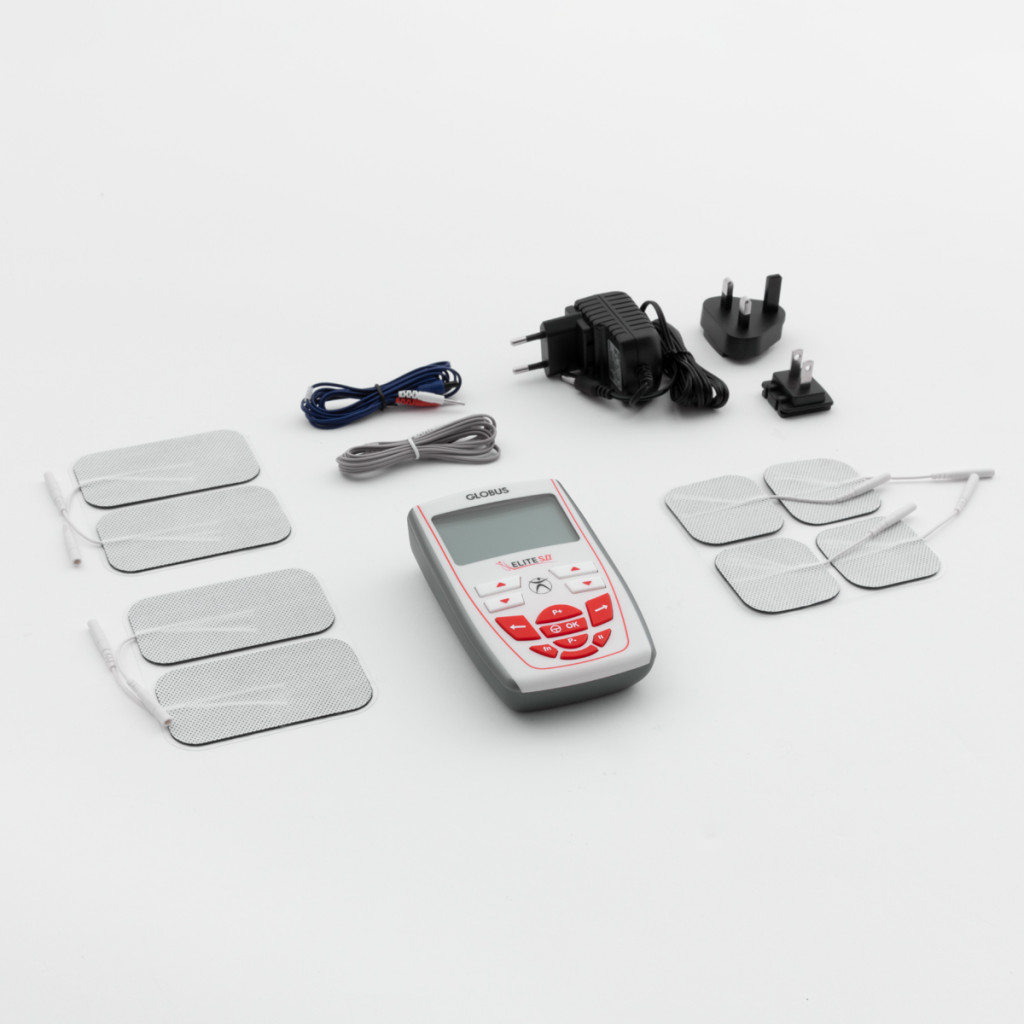

Elite SII 2-Channel TENS/EMS Device, 2 channels

The Elite SII is a modern electrostimulation device. It’s a portable, battery-powered medical device with two independent channels for simultaneous treatment of different body parts. Its compact size (13 × 8 × 2 cm) and light weight (220 g) make it ideal for daily use and portability.

Technology and Operating Parameters

The device uses advanced microprocessor control to generate precise electrical impulses from 0 to 100 mA per channel. The rectangular, biphasic, symmetrical, compensated waveform ensures effective and safe treatment. Pulse frequency is adjustable between 0.3–150 Hz and pulse width between 50–400 µs, allowing optimal settings for various therapies.

Target Users and Applications

Home Users

Designed for home use, the Elite SII lets you perform professional-quality electrostimulation treatments in your own home. It’s especially useful for those needing regular pain relief or athletes looking to regenerate muscles, prevent injuries or aid recovery.

Athletes and Active Lifestyles

The device offers numerous sport-specific programs to help athletes with warm-up, strength building, endurance training and post-workout recovery.

Rehabilitation

Ideal for rehabilitation, the Elite SII supports post-surgery muscle strengthening and treatment of musculoskeletal conditions with special programs for knee, shoulder and ankle rehabilitation.

Treatment Modes and Programs

Sport Programs

Includes specialized sport programs—warm-up, strength, endurance and recovery protocols—based on scientific parameters to support optimal muscle development and regeneration.

Pain Relief (TENS) Programs

Features various TENS (Transcutaneous Electrical Nerve Stimulation) programs to effectively reduce pain by activating the body’s natural analgesic mechanisms, promoting endorphin release and blocking pain signals.

Aesthetic and Beauty Programs

Offers programs for fat reduction, body shaping and muscle toning to help contour the body and improve skin firmness.

Principles and Mechanism of Electrostimulation

Neurophysiological Basics

Electrical impulses emitted by the device activate muscles via nerve endings, mimicking natural muscle contractions. This process improves blood circulation and metabolism.

Effects of Different Frequencies

Low frequencies (1–10 Hz) mainly relieve pain and promote relaxation, medium frequencies (20–50 Hz) support muscle strengthening and endurance, and high frequencies (80–120 Hz) are effective for developing fast-twitch muscle fibers.

Medical Applications

Musculoskeletal Conditions

Effectively treats conditions such as:

• Neck and back pain
• Arthritis
• Muscle aches and cramps
• Tennis elbow and other tendon issues

Rehabilitation Applications

Excellent for post-surgical rehabilitation, including:

• Post-knee surgery muscle strengthening
• Post-shoulder surgery range of motion improvement
• Post-ankle injury stabilization
• General muscle weakness treatment

Circulatory Issues

Improves blood flow and reduces edema with special anti-edema programs for:

• Leg and ankle swelling
• Venous circulation issues
• Adjunct lymphoedema treatment

Usage Guide and Protocol

Preparation and Settings

Before treatment, clean and dry the skin and apply electrodes as shown in the manual.

Treatment Procedure

Gradually increase intensity while monitoring comfort. Choose the appropriate program and adjust intensity to a level that is pleasant yet effective. Sessions typically last 20–30 minutes.

Post-treatment Care

After treatment, carefully remove electrodes and place them back on the protective film. Regularly clean the device and electrodes according to manufacturer instructions.

Contraindications and Safety

Absolute Contraindications

Do not use with:

• Pacemaker users
• Pregnant women
• Epilepsy patients
• Cancer near the treatment area
• Acute inflammation or infection

Relative Contraindications

Use with caution for:

• Bleeding disorders
• Sensitive skin
• Metal implants
• High blood pressure

Safety Guidelines

For safe use, follow:

• Correct electrode placement
• Gradual intensity increase
• Recommended treatment durations
• Cleaning and maintenance instructions

Summary and Recommendations

The Elite SII is a versatile, effective electrostimulation device providing safe, efficient treatment for pain relief, sports rehabilitation and general wellness. Success depends on proper program selection, correct electrode placement and adherence to safety guidelines.

Device Programs

• Medical Treatments
  • 16 TENS programs for pain relief
  • 4 rehabilitation programs
• Sport 30 program variants
• Fitness, Body Shaping & Beauty 43 programs for shaping, toning and general fitness

Muscle Treatments (Sport)

• Active regeneration – lower limbs
• Active regeneration – upper limbs
• Active regeneration – abdomen
• Endurance – lower limbs
• Endurance – upper limbs
• Endurance strength – lower limbs
• Endurance strength – upper limbs
• Endurance strength – abdomen
• Warm-up – lower limbs
• Warm-up – upper limbs
• Muscle relaxation – lower limbs
• Muscle relaxation – upper limbs
• Muscle relaxation – abdomen
• Capillarization – lower limbs
• Capillarization – upper limbs
• Capillarization – abdomen
• Max strength – lower limbs
• Max strength – upper limbs
• Max strength – abdomen
• Stiffness relief – lower limbs
• Stiffness relief – upper limbs
• Stiffness relief – abdomen
• Motor point pen
• Reaction speed – lower limbs
• Reaction speed – upper limbs
• Explosive strength – lower limbs
• Explosive strength – upper limbs
• Pre-competition warm-up – lower limbs
• Pre-competition warm-up – upper limbs

TENS & Pain Management

• Carpal tunnel syndrome
• Endorphin TENS
• Epicondylitis (tennis/golfer’s elbow)
• Conventional pain relief TENS
• Sciatica
• Muscle pain
• Muscle injury
• Lumbago
• Menstrual pain
• Post-operative pain
• Neck pain
• Osteoarthritis
• Rotator cuff inflammation
• Knee osteoarthritis
• Trapezius pain
• Shoulder-scapular periarthritis

Fitness, Beauty & Wellness

• Anti-cellulite lipolysis – hips & buttocks
• Anti-cellulite lipolysis – upper limbs
• Anti-cellulite lipolysis – abdominal area
• Anti-cellulite lipolysis – legs
• Facial beauty care 1
• Facial beauty care 2
• Swollen upper limbs
• Swollen legs
• Edema reduction – hips & buttocks
• Edema reduction – upper limbs
• Edema reduction – abdomen
• Edema reduction – legs
• Toning – hips & buttocks
• Toning – upper limbs
• Toning – abdomen
• Toning – legs
• Body shaping – hips & buttocks
• Body shaping – abdomen
• Body shaping – legs
• Post-pregnancy abdominal shaping
• Abdominal sculpting for men
• Leg toning massage
• Lipostress – lower limbs
• Lipostress – buttocks
• Lipostress – abdominal area
• Lipostress – legs
• Lipostress – hips
• Breast toning 1
• Breast toning 2
• Male chest sculpting
• Post-pregnancy edema reduction – abdomen
• Post-pregnancy lipolysis – abdomen
• Mass gain – upper limbs
• Mass gain – upper limbs (women)
• Mass gain – legs
• Mass gain – legs (women)
• Toning – hips & buttocks
• Toning – upper limbs
• Toning – abdomen
• Toning – back
• Toning – legs
• Vascularization – upper limbs + A1
• Vascularization – legs

Prevention

• Ankle flexor/extensor muscles
• Mixed incontinence
• Prevention – ankle
• Prevention – elbow
• Prevention – quadriceps
• Prevention – knee
• Prevention – shoulder
• Prevention – shoulder subluxation
• Quadriceps atrophy with prosthesis
• Rehabilitation
• Re-athletization – shoulder
