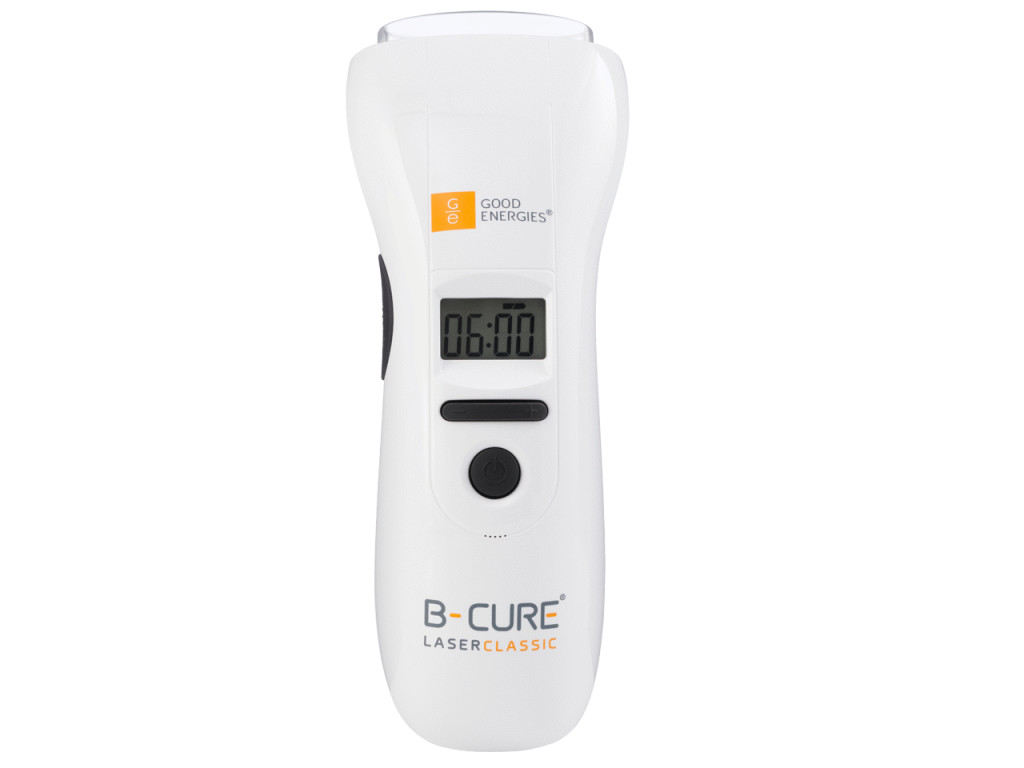

B-Cure Laser Classic softlaser (LLLT)

Operating Principle and Technology

The B-Cure Classic operates with a GaAIAs (gallium-aluminum-arsenide) solid-state laser diode that emits infrared laser light at a wavelength of 808 nanometers.

This specially calibrated laser beam runs at a maximum power of 250 mW and a pulse frequency of 11.7 kHz, optimal for tissue regeneration and pain relief.

The device delivers 4.2 joules of energy per minute to the treated area, scientifically proven to stimulate the cells' natural healing processes.

Applications

Orthopedic Applications

The B-Cure Classic is especially effective for various musculoskeletal problems. It can successfully treat chronic back and lower back pain, with treatments performed longitudinally along the spine. For neck pain, therapy can be applied alongside the vertebrae as well as on the sides of the neck.

Joint Issues

The device is excellent for joint pain.

It can be used on all joints, for example treating different spots around the knee (behind the fold, as well as the outer and inner sides). For shoulder issues, both the painful areas and surrounding tissues can be treated for more effective results.

Special Conditions

The device is also effective for treating specific conditions such as carpal tunnel syndrome, where various directional treatments of the inner wrist can be combined. For fibromyalgia and myofascial pain syndrome, targeted treatment of painful areas is possible.

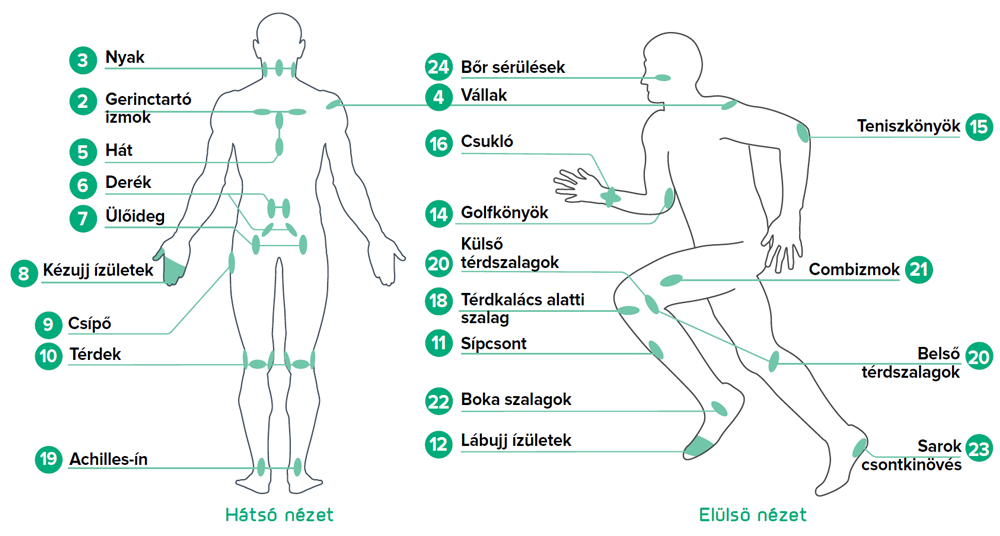

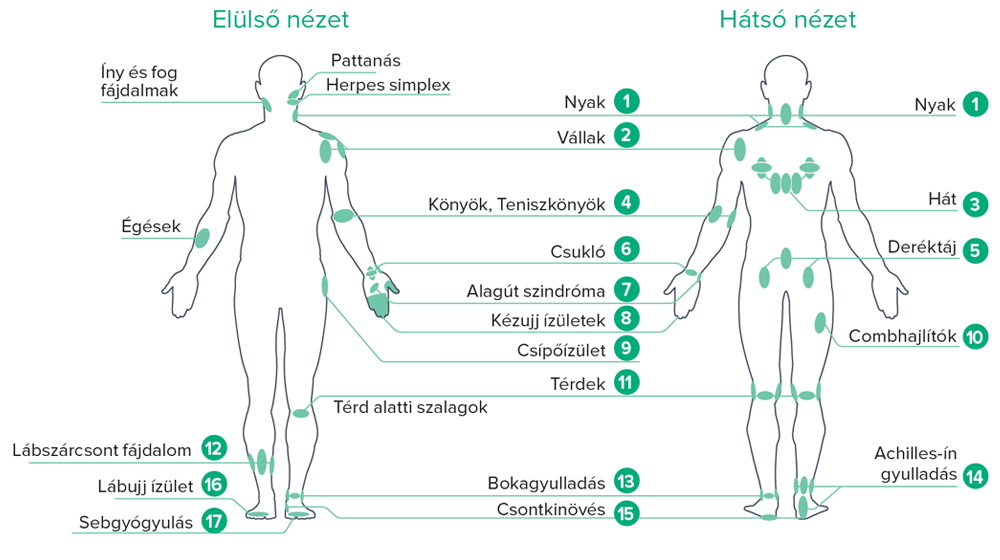

Diseases Treatable by Softlaser

Musculoskeletal Origin Diseases

• Fresh and chronic pain of bones, joints, and tissues
• Joint capsule and partial ligament tears
• Lower back, thoracic, neck, and other muscle pains
• Lumbago, pain caused by herniated discs
• Knee, hip, shoulder, hand and toe joint pains and osteoarthritis
• Rheumatic pain (rheumatoid arthritis) and/or chronic tendonitis
• Inflammations of tendons, tendon sheaths, and muscles caused by overstrain
• Heel bone spurs and sprains
• Tennis and golfer's elbow
• Achilles tendonitis, wrist tendon sheath inflammation
• Carpal tunnel syndrome (CTS)
• Myofascial pain syndrome

Skin Conditions

• Wound healing stimulation
• Hard-to-heal wounds, ulcers
• Diabetes-related ulcers
• Acne - pimply skin
• Fresh scars and burns
• Scar beautification, elimination of scar pain
• Promotes better and more aesthetic healing of surgical scars
• Cold sores, shingles
• Dermatitis (eczema)

Dental Complaints

• Gingivitis and tooth root inflammation
• Any oral mucosa inflammation
• After tooth extraction or dental surgery for reducing inflammation and promoting healing
• Treatment of jaw joint inflammation and pain

Maintenance and Care

The device requires minimal maintenance, but for longer lifespan, some basic rules must be followed. The laser beam exit must be regularly cleaned with 70% alcohol solution, especially when used by multiple users. During cleaning, be careful not to wet the lens. The device should be stored in a dry, cool place, protected from direct sunlight and extreme temperatures.

Safety and Contraindications

The B-Cure Classic is extremely safe, with virtually no contraindications. However, some important safety instructions must be adhered to:

• Do not direct the laser beam into the eyes
• Not to be used on the abdominal area during pregnancy
• Do not use around active malignant tumors
• Treatment must be performed directly on the skin surface

Technical Specifications

• Laser type: GaAIAs solid-state laser diode
• Maximum power: 250 mW
• Wavelength: 808 nm (infrared)
• Pulse frequency: 11.7 kHz
• Laser pulse duration: 24.5 μs
• Diode lifetime: 1000 hours
• Energy delivered per minute: 4.2 joules

The device has practical usage parameters:

• Timer setting range: 00:00 - 99:30 minutes
• LCD display size: 26 x 15 mm
• Power supply: 3 pcs AAA rechargeable batteries
• Battery life: 2 hours at full charge
• Charging time: 5-7 hours
• Operating temperature: 0°C - 40°C
• Humidity tolerance: 15-90% (non-condensing)

The device is compact and portable:

• Dimensions: 200 x 70 x 40 mm
• Weight: 175 grams
• Laser beam size: 45 x 10 mm at the aperture
