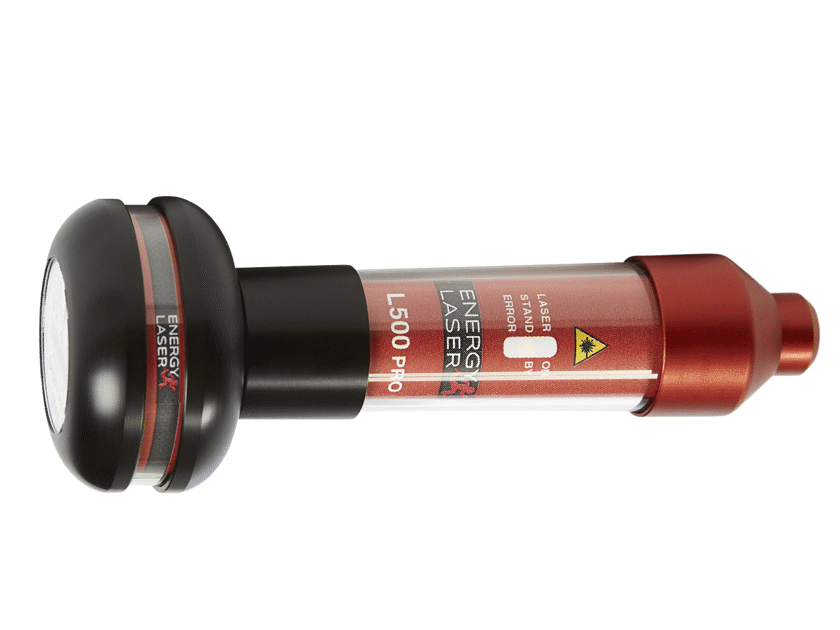

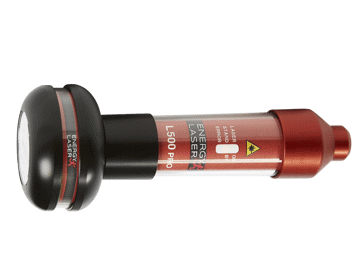

Energy-Laser L500 Pro softlaser (LLLT)

The Energy-Laser L500 Pro is a modern medical device certified under medical technology standards that operates on the principle of low-intensity laser therapy (LLLT) and photobiomodulation (PBM). It uses an 808 nm infrared laser with 500 mW power, effectively relieving pain and accelerating tissue regeneration.

Applications

The Energy-Laser L500 Pro is widely used for treating various musculoskeletal problems and painful conditions.

Typical uses of the softlaser include, but are not limited to:

• Musculoskeletal problems: arthritis, tendonitis, bursitis, muscle strains, and joint pain.
• Skin problems: acne, ulcers, scars, and stretch marks.
• Ear-nose-throat problems: tinnitus and ear canal inflammation.
• Dental issues: jaw inflammation, trigeminal neuralgia, facial paralysis, and gingivitis.

The beneficial effects of laser light are scientifically proven. During treatment, the light energy penetrating the tissues stimulates cell function, improves blood circulation, and reduces inflammatory processes. Regular use provides not only symptomatic relief but also promotes actual healing processes.

It is excellent for the most common musculoskeletal complaints such as chronic back pain, neck pain, and arthritis. It assists in treating knee joint wear, shoulder problems, and temporomandibular joint inflammation. It is also highly suitable for promoting wound healing (e.g., scars, ulcers, stretch marks, acne) and postoperative rehabilitation.

Simple and safe to use

The Energy-Laser L500 Pro is designed for user-friendliness. Its compact size, light weight, and ergonomic design make it easy to handle and accurately position on the treatment area.

Several built-in safety features ensure safe use. The device automatically switches off after 5 minutes of use or in case of overheating. The integrated LED display continuously informs about the operational status. A green light indicates active treatment, yellow indicates standby, and red signals possible malfunctions.

The device operates on a rechargeable Li-Ion battery, which provides up to 2 hours of continuous treatment when fully charged. Charging is done via a simple USB connection, taking only 1.5 hours for a full charge. The battery charge level is also shown on the LED display.

Treatment protocol and dosage

Effective treatment requires following the appropriate protocol. For chronic issues, one treatment per day is recommended in the first week, then 2-3 times per week in the second and third weeks, and finally 1-2 times per week from the fourth week onward.

For a single treatment point, generally 1-4 beeps (10-40 seconds) of treatment time is suggested, delivering 5-20 joules of energy to the tissues. The device emits a beep every 10 seconds, indicating when to change position. This helps avoid excessive local heating and ensures optimal energy delivery.

Different areas require different treatment times:

• Wounds and skin surfaces: 2-5 joule/cm²
• Tendons, joints, muscles: 5-10 joule/cm²
• Pain points: 10-150 joule or until pain relief

During treatment, place the device directly on the skin. In case of open wounds, keep the device about 5 cm away. For larger areas, treat point by point, applying the recommended time at each point.

Quality and Warranty

The Energy Laser L500 Pro is manufactured in compliance with the strict EU medical device regulations. It holds CE certification (CE 2274) and meets ISO 13485:2016 quality management system requirements.

The device comes with a 3-year warranty. The laser diode is designed for 10,000 operating hours, ensuring several years of trouble-free use under average conditions.

Safety information and precautions

Although designed for home use, it is important to observe basic safety rules. Never direct the laser beam into the eyes or nearby areas. Avoid use on the abdomen during pregnancy. Treatment of cancerous areas is also contraindicated.

Consult a physician or healthcare professional before use, especially with epilepsy, blood clotting disorders, or other chronic diseases. Always follow the recommended protocol and avoid exceeding the suggested treatment times.

Scientific background and efficacy

Laser light therapy has a long history spanning several decades. Numerous clinical studies have demonstrated its effectiveness in treating various musculoskeletal problems. The 808 nm wavelength is particularly suitable for treating deeper tissues due to its optimal penetration depth.

The 500 mW power output of the Energy-Laser L500 Pro represents an ideal balance of efficacy and safety. It delivers sufficient energy for therapeutic effect without undesirable side effects when used properly.

Maintenance and hygiene

The device requires minimal maintenance. Clean the laser optics after each use with 70% alcohol solution. Ensure the device is switched off during lens cleaning. Wipe the device housing with a slightly damp cloth or disinfectant wipe.

For hygienic use, disinfect the treatment head after each patient. Using a transparent film cover to prevent direct skin contact is a practical option.

Comparison

The Energy-Laser L500 Pro offers several advantages compared to Personal Laser L400, Safelaser 500, or B-Cure devices:

Higher laser class: The L500 Pro belongs to laser class 3, which means higher power and effectiveness compared to class 1 devices like B-Cure or Safelaser 500. Although class 3 lasers require protective glasses, the increased power enables faster and more effective treatments.

Greater power and shorter treatment times: The Energy-Laser L500 Pro emits a continuous laser beam at 500 mW. Safelaser 500 and B-Cure use prisms and thus have lower power.
Due to higher power, the L500 Pro delivers the necessary energy to tissues faster. Along with significantly shorter treatment times, treatment effectiveness is also higher.
For example, delivering 5 joules of energy takes only 10 seconds with the Energy-Laser L500 Pro, compared to 5-8 minutes with B-Cure and 2-3 minutes with Safelaser 500.

Deeper tissue penetration: Because of higher energy density, the laser beam of the Energy-Laser L500 Pro penetrates tissues more deeply. This allows more effective treatment of larger joints, cartilage, and ligaments.

More precise treatment: The Energy-Laser L500 Pro laser beam covers 1 cm² area, which is smaller than B-Cure (4.5 cm²) or Safelaser 150 (2.5 cm²) beam areas. The smaller beam diameter enables more targeted treatment, especially on smaller areas or specific points such as trigger points, nerve injuries, or polyneuropathy.

Overall, the Energy-Laser L500 Pro offers more effective and faster treatment, especially for deeper tissue issues, compared to the other devices mentioned.

Technical specifications:

• Laser power: Continuous wave (CW), 500 mW.
• Wavelength: 808 nm in the infrared (IR) spectrum.
• Laser class: 3B.
• Treatment depth: Approximately 3–8 cm into tissues.
• Energy delivery: 5 Joules every 10 seconds.
• Beam area: 1 cm², allowing precise targeting of treatment areas.
• Battery: Operates with a rechargeable Li-Ion battery providing up to 2 hours of treatment per charge.
