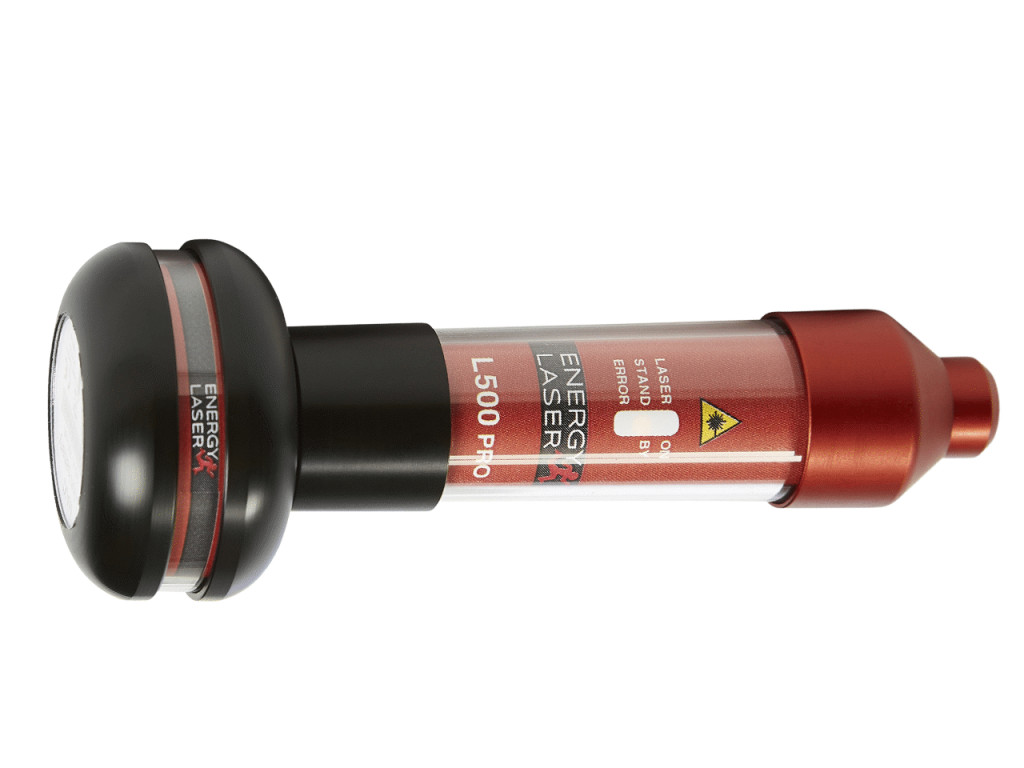

Energy-Laser L500 Pro softlaser (LLLT)

The Energy-Laser L500 Pro is a modern, medically certified medical device operating on the principles of low-level laser therapy (LLLT) and photobiomodulation (PBM). The device uses 808 nm infrared laser light with 500 mW power, effectively relieving pain and accelerating tissue regeneration.

Application Areas

The Energy-Laser L500 Pro is widely used to treat various musculoskeletal problems and painful conditions.

Common applications of the softlaser include but are not limited to:

• Musculoskeletal problems: arthritis, tendonitis, bursitis, muscle strains, and joint pain.
• Skin problems: acne, ulcers, scars, and stretch marks.
• ENT issues: tinnitus and ear canal inflammation.
• Dental issues: jaw inflammation, trigeminal neuralgia, facial paralysis, and gingivitis.

The beneficial effects of laser light are scientifically proven. During treatment, the light energy penetrating the tissues stimulates cell function, improves blood circulation, and reduces inflammatory processes. Regular use provides not only symptomatic relief but also supports genuine healing processes.

It is excellently suited for the most common musculoskeletal complaints such as chronic back pain, neck pain, and arthritis. It aids in the treatment of knee joint wear, shoulder problems, and temporomandibular joint inflammation. It is also highly effective in promoting wound healing (e.g., scars, ulcers, stretch marks, acne) and postoperative rehabilitation.

Simple and Safe Use

The Energy-Laser L500 Pro is designed to be user-friendly. Its compact size, lightweight, and ergonomic design make it easy to handle and precisely position on the treatment area.

Safe use is guaranteed by multiple built-in protections. The device automatically switches off after 5 minutes of use or in case of overheating. The built-in LED display continuously informs about the operating status. Green light indicates active treatment, yellow shows standby mode, and red warns of possible malfunctions.

The device operates on a rechargeable Li-Ion battery, which provides up to 2 hours of continuous treatment when fully charged. Charging is done via a simple USB connection and takes only 1.5 hours. The battery charge level is also indicated by the LED display.

Treatment Protocol and Dosage

Following an appropriate protocol is essential for effective treatment. For chronic problems, daily treatment is recommended during the first week, then 2-3 times per week in the second and third weeks, and 1-2 times per week from the fourth week onwards.

At a single treatment point, generally 1-4 beeps (10-40 seconds) are recommended, delivering 5-20 joules of energy to the tissues. The device emits a beep every 10 seconds to signal when to change position, preventing excessive local heating and ensuring optimal energy delivery.

Treatment times vary by area:

• Wounds and skin surfaces: 2-5 joule/cm²
• Tendons, joints, muscles: 5-10 joule/cm²
• Pain points: 10-150 joule or until pain relief

During treatment, place the device directly on the skin surface. For open wounds, keep approximately 5 cm distance. Treat larger areas point by point, applying the recommended time at each point.

Quality and Warranty

The Energy Laser L500 Pro is manufactured according to the EU's strict medical device regulations. The device holds CE certification (CE 2274) and complies with ISO 13485:2016 quality management system requirements.

A 3-year warranty applies. The laser diode is designed for 10,000 operating hours, ensuring years of trouble-free use under normal conditions.

Safety Information and Precautions

Although designed for home use, basic safety rules must be followed. Never direct the laser beam into or near the eyes. Do not use on the abdominal area during pregnancy. Treating cancerous areas is also contraindicated.

Consult a doctor or health professional before use, especially for epilepsy, blood clotting disorders, or other chronic conditions. Always adhere to the recommended protocol and do not exceed suggested treatment times.

Scientific Background and Effectiveness

Laser light therapy has a history of several decades. Numerous clinical studies confirm its effectiveness in treating various musculoskeletal problems. The 808 nm wavelength is especially suitable for deeper tissue treatment due to its optimal penetration depth.

The 500 mW power delivered by the Energy-Laser L500 Pro represents an ideal balance between effectiveness and safety. It provides enough energy for therapeutic effects without causing unwanted side effects when used properly.

Maintenance and Hygiene

The device requires minimal maintenance. Clean the laser optics after each use with 70% alcohol solution. Ensure the device is switched off during cleaning. Wipe the housing with a slightly damp cloth or disinfectant wipe.

For hygienic use, disinfect the treatment head after each patient. Using transparent foil to prevent direct skin contact is a practical option.

Comparison

The Energy-Laser L500 Pro offers several advantages compared to the Personal Laser L400, Safelaser 500, or B-Cure devices:

Higher Laser Class: The L500 Pro belongs to class 3, offering greater power and effectiveness compared to class 1 devices like B-Cure or Safelaser 500. Although class 3 lasers require protective glasses, the increased power enables faster and more effective treatment.

Greater Power and Shorter Treatment Time: The Energy-Laser L500 Pro emits a continuous 500 mW laser beam. Safelaser 500 and B-Cure use prisms resulting in lower power. Due to higher power, the L500 Pro delivers energy to tissues faster, providing significantly shorter treatment times with higher efficiency. For example, delivering 5 joules of energy requires only 10 seconds with the L500 Pro, compared to 5-8 minutes with B-Cure and 2-3 minutes with Safelaser 500.

Deeper Tissue Penetration: Higher energy density allows the L500 Pro laser beam to penetrate deeper into tissues, making it more effective for larger joints, cartilage, and ligaments.

More Precise Treatment: The L500 Pro laser beam covers 1 cm², smaller than B-Cure (4.5 cm²) or Safelaser 150 (2.5 cm²), enabling targeted treatment especially on smaller areas or specific points such as trigger points, nerve injuries, or polyneuropathy.

Overall, the Energy-Laser L500 Pro provides more effective and faster treatment, particularly for deeper tissue issues compared to the devices mentioned.

Technical Specifications:

• Laser power: Continuous wave (CW), 500 mW.
• Wavelength: 808 nm infrared (IR) spectrum.
• Laser class: 3B.
• Treatment depth: Approximately 3–8 cm in tissues.
• Energy delivery: 5 Joules every 10 seconds.
• Beam area: 1 cm², allowing precise targeting of treatment areas.
• Battery: Operates on a rechargeable Li-Ion battery with up to 2 hours of treatment time per charge.
