PhysioLaser 12.0 softlaser device

The Physiolaser 12.0 is a top-tier laser therapy device that combines the latest advances in medical technology with clinical effectiveness. This CE-marked, class IIb medical device elevates physiotherapy and rehabilitation treatments to a new level with its outstanding performance and versatility.

Special attention was paid during the device's design to meet professional user needs and patient safety.

Innovative technology and performance

The heart of the Physiolaser 12.0 is a modern GaAlAs laser diode operating at 808 nm ±10 nm wavelength. Optionally, 980 and 1064 nm treatment heads can be ordered.
The device's excellent maximum RMS power of 12 W ±20% significantly surpasses basic category devices. The optimized 11 mm optical focal point covers a treatment area of 0.95 cm², providing the ideal balance between precision and effective coverage. A beam divergence of only 0.23 degrees allows exceptionally precise energy delivery. The optics are interchangeable; a 22 mm diameter optic is included in the base package.

Advanced treatment modes and flexibility

The Physiolaser 12.0 can be used in two basic modes: continuous (CW) and pulsed. The pulsed mode offers an extraordinary frequency range from 1 to 10,000 Hz, providing great flexibility for various therapeutic protocols. Unique to this device is a 660 nm, 100mW aiming beam classified as class I laser, aiding precise targeting and execution of treatments.

Outstanding safety solutions

Safety is a key focus in the development of the Physiolaser 12.0. Its intelligent power limiting system (APL) continuously monitors operational parameters and automatically adjusts power and treatment duration as needed.

The device also features an emergency stop button for immediate safe shutdown by both operator and patient.

Special protective glasses provided offer full protection in the 808-980 nm wavelength range.

Wide therapeutic applications

The Physiolaser 12.0 has an exceptionally broad scope of applications in healthcare. It is highly effective in treating various musculoskeletal issues such as arthrosis, meniscus pain, knee arthritis, as well as shoulder and neck complaints. The device’s anti-inflammatory, edema-reducing, and pain relief effects are scientifically proven, making it especially valuable in rehabilitation medicine.

A new dimension in aesthetic treatments

Besides healthcare applications, the Physiolaser 12.0 offers outstanding possibilities in aesthetic treatments. It can be used effectively for facial skin rejuvenation, wrinkle treatment, acne therapy, and solving various skin problems. Body aesthetic treatments include cellulite treatment, stretch marks and scar reduction, and localized fat reduction.

Predefined treatment programs

General

• Arthrosis
• Rheumatoid arthritis
• Muscle injury
• Muscle contracture
• Muscle stiffness relief
• Fibromyalgia
• Radiculopathies
• Tendinopathies
• Neuralgia
• Postherpetic neuralgia
• Sudeck's disease
• Bursitis
• Edema

Hand - Arm

• Arthrosis
• Rheumatoid arthritis
• Raynaud syndrome
• Finger pain
• Epicondylitis
• Carpal tunnel syndrome
• Wrist pain
• Wrist fracture
• Tendinitis
• Edema
• Radius fracture

Knee

• Arthrosis
• Rheumatoid arthritis
• Acute knee pain
• Chronic knee pain
• Meniscus pain
• Bursitis
• Edema
• Patellar tendon
• Ligament injury
• Joint pain (gonalgia)
• Chondropathy
• Chondromalacia
• Sprain

Foot - Ankle

• Arthrosis
• Rheumatoid arthritis
• Metatarsalgia
• Ankle pain
• Plantar fasciitis
• Achilles tendonitis
• Ankle sprain
• Edema
• Heel pain

Back - Lower back

• Spinal arthrosis
• Acute lower back pain
• Lumbago
• Myofascial pain
• Rheumatoid arthritis
• Radiculopathies

Shoulder

• Myofascial pain
• Arthrosis
• Shoulder joint pain
• Bursitis
• Adhesive capsulitis
• Tendon inflammation
• Rheumatoid arthritis
• Rotator cuff injury
• Shoulder dislocation

Neck

• Arthrosis
• Rheumatoid arthritis
• Myofascial pain
• Radiculopathies
• Chronic neck pain
• Temporo-mandibular joint inflammation
• Trigeminal neuralgia
• Cervical disc herniation

Skin

• Wounds, scars
• Ulcers

Full programmability

980nm predefined programs

• Pain relief
• Neck pain
• Lower back pain
• Bursitis
• Baker cyst
• Cruralgia
• De Quervain syndrome
• Sprain
• Bruise
• Acute pain
• Chronic pain
• Edema
• Hematoma
• Extensive hematomas
• Epicondylitis
• Epitrochleitis
• Herniated disc
• Fibromyalgia
• Inflammations
• Ligament injury
• Muscle injury
• Disc pain
• Synovitis
• Muscle strain
• Tendinopathy
• Carpal tunnel

Ergonomic design and user-friendly interface

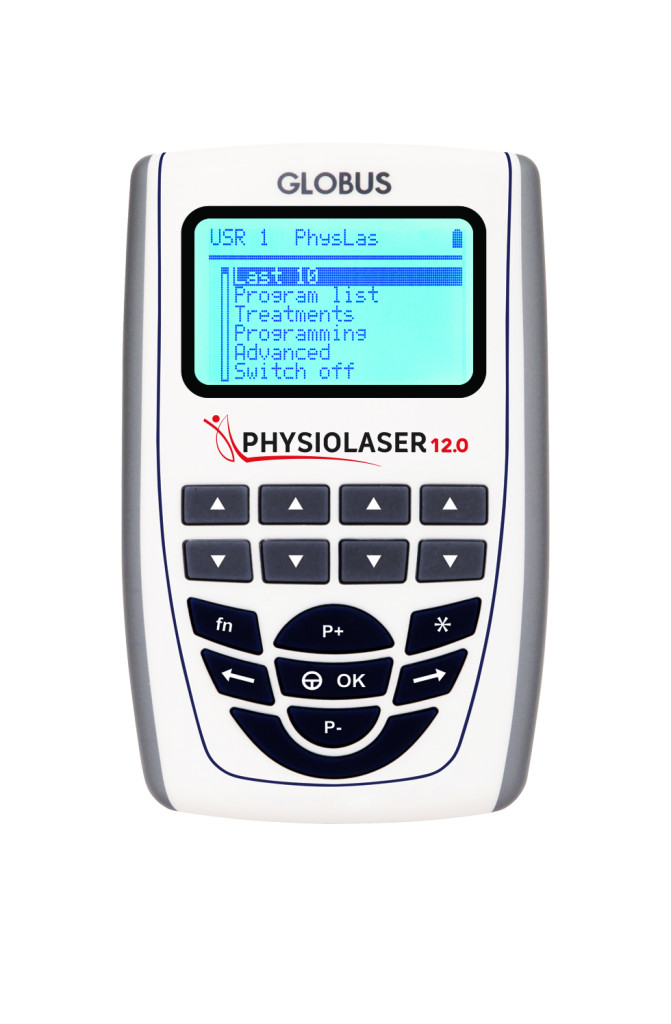

With compact dimensions (160 x 99 x 35.4 mm) and weighing just 440 grams, the device’s ergonomic design allows long-term, fatigue-free use. The food-grade ABS housing ensures both an aesthetic appearance and durability. The high-contrast display and intuitive user interface simplify parameter settings and treatment monitoring.

Energy-efficient operation and mobility

The Physiolaser 12.0 features dual power supply: it can be used directly from the mains or from the built-in 7.2V 1.8Ah Ni-MH battery. The intelligent energy management system optimizes battery life and indicates the charge level. The device also has an automatic shutdown function, enhancing energy efficiency.

Programmability and customization

The device offers a rich program selection, including the most common treatment protocols, while also allowing creation and storage of custom programs. Treatment parameters like power, frequency, treatment time, and treatment area size are easily adjustable to meet individual patient needs.

The Physiolaser 12.0 is a high-end laser therapy device that combines the latest technology with clinical efficacy and safety. It is an ideal choice for hospitals, clinics, rehabilitation centers, and private practices where reliable and versatile treatment options are essential. Thanks to its outstanding performance, broad application possibilities, and user-friendly design, it is rightly considered one of the leading devices in professional laser therapy.
