PhysioLaser 500 softlaser device

The Physiolaser 500 is a modern, effective laser therapy device, specifically developed for physiotherapy and podiatric treatments.

This CE-certified, Class IIb medical device offers a reliable solution for various musculoskeletal system issues. It is particularly suitable for professionals working in rehabilitation medicine, sports medicine, and orthopedics.

Technical specifications and performance

The "heart" of the Physiolaser 500 is a state-of-the-art GaAlAs diode operating at 808 nm ±10 nm wavelength. The device's maximum RMS power is 0.5 W ±20%, which can be precisely controlled to match different treatment protocols.

The device features an 11 mm optical focal point, providing a treatment area of 0.95 cm². The beam divergence is only 0.23°, allowing for precise and efficient energy delivery.

Treatment modes and flexibility

The Physiolaser 500 can be used in two different modes: continuous and pulsed. In pulsed mode, the frequency can be adjusted between 1 and 10,000 Hz, enabling customization of treatments.

The device is equipped with a 660 nm, 100mW laser aiming beam (Class I laser) to assist precise treatment.

Safety and protection

Safety was a paramount consideration in the device's design. The Physiolaser 500 includes an automatic power limiting system (APL) that protects the device from overheating and ensures treatment effectiveness.

During use, both the operator and patient must wear special protective goggles that provide full protection from laser radiation.

Therapeutic applications

The Physiolaser 500 offers a wide range of applications in healthcare.

The device is especially effective in treating arthrosis, ankle sprains, knee pain, shoulder and neck pain, as well as various tendon issues. Its anti-inflammatory, edema-reducing, and pain relief effects are scientifically proven.

Aesthetic treatments

Beyond healthcare, the Physiolaser 500 is also suitable for aesthetic treatments.

The device can be effectively used for treating wrinkles, acne, dehydrated skin, and skin rejuvenation. Additional application areas include stretch marks, cellulite, and various cellulite problems.

14 predefined treatment programs

• Health and rehabilitation
  • Arthrosis
  • Ankle sprain
  • Knee pain
  • Edema caused by ankle sprain
  • Shoulder joint pain
  • Epicondylitis (tennis and golfer's elbow)
  • Chronic back pain
  • Neck pain
  • Tendinopathy (tendon degeneration)
• Beauty and Fitness
  • Stretch marks on breasts
  • Edematous cellulite on thighs, hips, and buttocks
  • Other cellulite
  • Treatment of stretch marks on the body
  • Wounds, scars

Ergonomic design and usability

The device boasts compact dimensions (160 x 99 x 35.4 mm) and weighs only 440 grams, ensuring comfortable use. Housed in ABS food-grade material, it has IP20 protection.

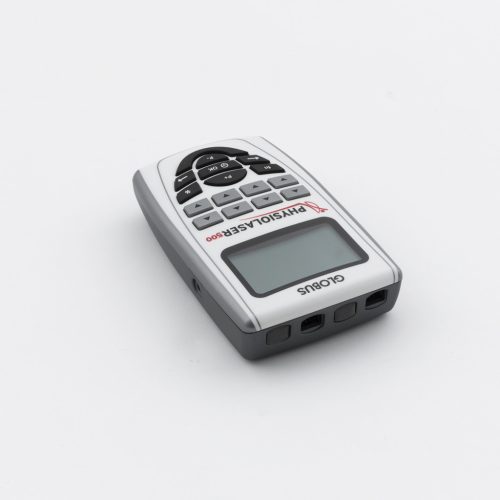

The high-contrast display and intuitive user interface facilitate easy operation.

Power supply and mobility

The Physiolaser 500 features dual power supply options: it can be used on mains power and battery.

The built-in 7.2V 1.8Ah Ni-MH battery provides long operating time, ideal for mobile treatments. The device includes automatic energy-saving functions and battery charge level indicator.

Programmability and customization

The device comes with numerous preprogrammed treatment protocols, while also allowing creation and storage of personalized programs. Treatment parameters such as power, frequency, and treatment duration can be adjusted according to patients' individual needs.

The Physiolaser 500 is a versatile, modern laser therapy device that combines effectiveness, safety, and user-friendly design. It is an ideal choice for clinics, practices, and rehabilitation centers where reliable and professional treatment options are essential. Thanks to its wide-ranging applications, precise control, and ergonomic design, it is an excellent tool for healthcare professionals.
