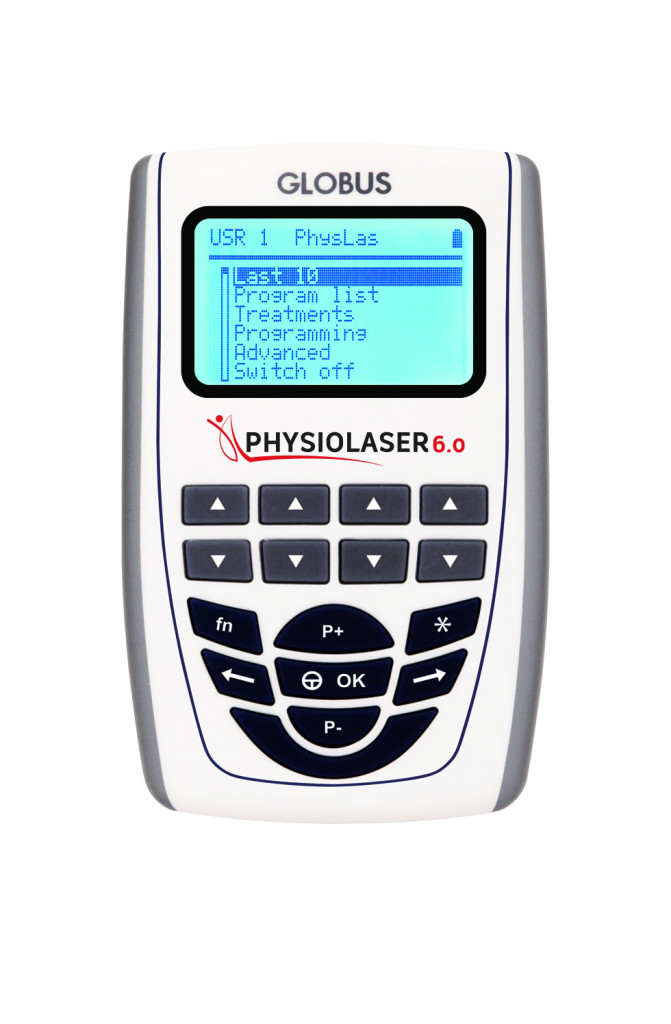

PhysioLaser 6.0 softlaser device

The Physiolaser 6.0 is a premium laser therapy unit that combines the latest advances in medical technology with clinical effectiveness. This CE-certified, Class IIb medical device sets a new standard in physiotherapy and rehabilitation treatments with its outstanding performance and versatility.

Special attention was given to professional user requirements and patient safety in the device design.

Innovative technology and performance

The heart of the Physiolaser 6.0 is a state-of-the-art GaAlAs laser diode operating at 808 nm ±10 nm wavelength. Optional 980 and 1064 nm treatment heads are available.
The device features an exceptional 6 W ±20% maximum RMS power, significantly exceeding base category devices. The optimized 11 mm optical focus covers a 0.95 cm² treatment area, providing an ideal balance between precision and effective coverage. The beam divergence of only 0.23 degrees allows remarkably precise energy delivery. An optional 22 mm diameter optic can be ordered.

Advanced treatment modes and flexibility

The Physiolaser 6.0 operates in two fundamental modes: continuous wave (CW) and pulsed. The pulsed mode frequency range from 1 to 10,000 Hz offers remarkable flexibility for various therapeutic protocols. The device’s unique feature is the 660 nm, 100mW aiming light, classified as a Class 1 laser to assist precise targeting and treatment execution.

Outstanding safety features

Safety was a priority in the development of the Physiolaser 6.0. Its intelligent power limiting system (APL) continuously monitors operational parameters and automatically adjusts power and treatment time when necessary.

The system includes an emergency stop button for immediate safe shutdown, protecting both operator and patient.

Special protective goggles provided with the device offer full protection in the 808-980 nm wavelength range.

Wide therapeutic applications

The Physiolaser 6.0 boasts extensive applications in healthcare practice. The device is highly effective in treating various musculoskeletal issues, such as arthrosis, meniscus pain, knee arthritis, as well as shoulder and neck complaints. Its anti-inflammatory, edema-reducing, and pain relief effects are scientifically proven, making it especially valuable in rehabilitation medicine.

A new dimension in aesthetic treatments

Besides medical applications, the Physiolaser 6.0 offers excellent possibilities in aesthetic treatments. It is effective for facial skin rejuvenation, wrinkle treatment, acne therapy, and addressing various skin problems. Body aesthetic treatments include cellulite treatment, stretch mark and scar treatment, and reduction of localized fat deposits.

Predefined treatment programs

General

• Arthrosis
• Rheumatoid arthritis
• Muscle injury
• Muscle contracture
• Fibromyalgia
• Radiculopathies
• Tendinopathies
• Neuralgia
• Bursitis
• Edema

Hand - Arm

• Arthrosis
• Rheumatoid arthritis
• Epicondylitis
• Carpal tunnel syndrome
• Wrist pain
• Tendinitis
• Edema

Knee

• Arthrosis
• Rheumatoid arthritis
• Acute knee pain
• Chronic knee pain
• Meniscus pain
• Bursitis
• Edema
• Patellar tendon
• Ligament injury
• Joint pain (gonalgia)
• Chondropathy
• Sprain

Foot - Ankle

• Arthrosis
• Rheumatoid arthritis
• Ankle pain
• Plantar fasciitis
• Achilles tendon inflammation
• Ankle sprain
• Edema
• Heel pain

Back - Lower back

• Spinal arthrosis
• Acute low back pain
• Lumbago
• Myofascial pain
• Rheumatoid arthritis
• Radiculopathies

Shoulder

• Myofascial pain
• Arthrosis
• Shoulder joint pain
• Bursitis
• Adhesive capsulitis
• Tendinitis
• Rheumatoid arthritis
• Rotator cuff injury

Neck

• Arthrosis
• Rheumatoid arthritis
• Radiculopathies
• Chronic neck pain
• Temporomandibular joint inflammation
• Trigeminal neuralgia

Skin

• Wounds, scars
• Ulcers

Full programmability

980nm predefined programs

• Pain relief
• Neck pain
• Back pain
• Bursitis
• Baker's cyst
• Cruralgia
• De Quervain's syndrome
• Sprain
• Bruise
• Acute pain
• Chronic pain
• Edema
• Hematoma
• Extensive hematomas
• Epicondylitis
• Epitrochleitis
• Herniated disc
• Fibromyalgia
• Inflammations
• Ligament injury
• Muscle injury
• Disc pain
• Synovitis
• Muscle strain
• Tendinopathy
• Carpal tunnel

Ergonomic design and user-friendly interface

Compact dimensions (160 x 99 x 35.4 mm) and a weight of only 440 grams make the device ergonomically designed for long-term, fatigue-free use. The food-grade ABS housing not only provides an aesthetic appearance but also durability. The high contrast display and intuitive interface make parameter settings and treatment monitoring easy.

Energy-efficient operation and mobility

The Physiolaser 6.0 features dual power supply options: can be used directly from mains or from the built-in 7.2V 1.8Ah Ni-MH battery. The smart power management system optimizes battery life and indicates charge level. The unit also includes an automatic shutoff function to enhance energy efficiency.

Programmability and customization

The device offers a rich program selection including the most common treatment protocols. It also allows creating and storing personalized programs. Treatment parameters such as power, frequency, treatment time, and area size can be easily adjusted to patient-specific needs.

The Physiolaser 6.0 is a top-tier laser therapy device combining cutting-edge technology with clinical efficacy and safety. It is an ideal choice for hospitals, clinics, rehabilitation centers, and private practices where reliable and versatile treatment options are essential. Thanks to its outstanding performance, broad application possibilities, and user-friendly design, it is rightly considered one of the leading professional laser therapy units.
