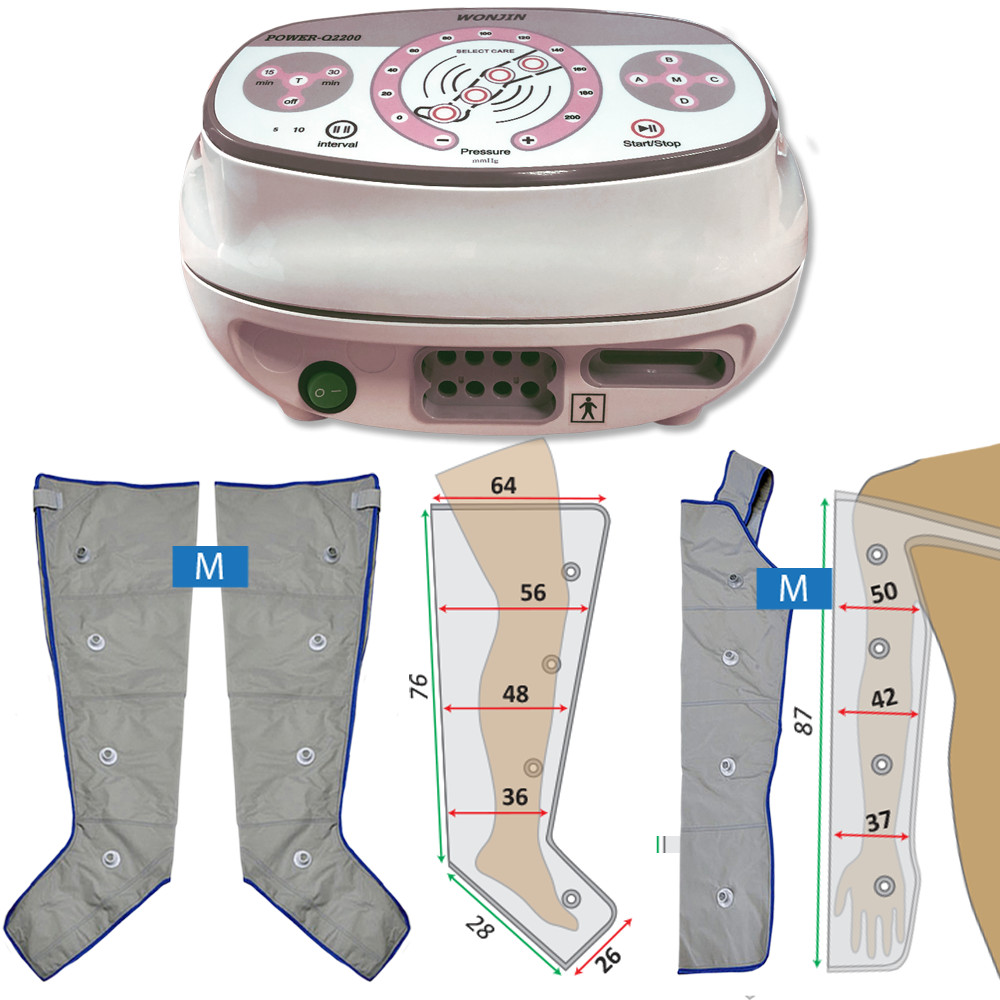

Power Q-2200 Set – M Leg and M Arm Cuffs

The device offers various types and sizes of cuffs, purchasable separately. Choose the cuff that allows targeted treatment of the desired area.

The arm, leg, and waist cuffs each have a special design for effective treatment of their respective areas. Up to three four-chamber cuffs can be connected simultaneously.

The arm cuff is especially useful for treating post-mastectomy arm lymphedema. The leg cuff comes in knee-length and mid-thigh versions, available in various sizes. The waist cuff is available as shorts or a belt, ideal for treating the abdomen and hips.

Upper limb treatment

Arm lymphedema usually affects one side, so typically only one arm cuff is needed. For athletic muscle restoration, consider using two arm cuffs to treat both arms simultaneously. The arm cuff includes a Velcro strap that fastens under the opposite underarm.

Arm cuff

Before purchase, measure the circumference of your arm at the wrist, forearm, and under the underarm. Select the appropriate size based on these measurements. The cuff is available in M and L sizes.

M-L arm cuff sizes: the green line and lowercase numbers indicate length in cm, the red line and bold numbers indicate circumference in cm.

Lower limb treatment

Before selecting a cuff, measure the circumference of your lower limb at the ankle, calf, kneecap, and top of the thigh. The thigh-length leg cuff is available in M-L sizes; if it doesn't fit, a zipper extender is available.

Thigh-length leg cuff

This cuff is ideal for treating leg lymphedema, varicose veins, and post-thrombosis conditions. Athletes may use it for muscle regeneration. Depending on whether one or both legs are affected, purchase one cuff or a pair. If standard sizes don't fit, extenders can increase the size.

M-L thigh cuff sizes: the green line and highlighted numbers indicate length in cm, the red line and bold numbers indicate circumference in cm.

Trunk and hip-abdomen treatment

For treating the thigh, hip, buttocks, and upper abdomen, choose from shorts or belt cuffs.

These cuffs are needed when lymphedema extends to the thigh and trunk requires treatment. They are also used in beauty treatments for cellulite and fat breakdown after liposuction.

The shorts cuff provides more effective treatment by fully enclosing the thigh and buttocks. The belt cuff resembles a mini-skirt, so the inner thigh and lower buttocks remain untreated.

Shorts cuff

The shorts cuff offers 360° treatment of the upper thigh, buttocks, and lower abdomen. Ideal for thigh-hip lymphedema treatment. Three rows of zippers allow size adjustment (smallest, middle, largest). Excellent for beauty uses like cellulite and post-cellulite treatments. The cuff contains an integrated airhose; no separate airhose is needed.

Belt cuff

Apply the belt cuff where the thigh cuff ends (mid-thigh upwards), securing it with Velcro. It is less effective than the shorts cuff but more affordable. Suitable for lymphedema and beauty treatments (cellulite). The belt cuff requires a separate airhose. To select the correct size, measure your abdomen (just below the navel) and hip circumference.

P = shorts cuff - M-L belt cuff sizes: the green line and highlighted number indicate length in cm; the red line and bold number indicate circumference in cm.

Cuff combinations

In some cases, combining cuffs, using more than one simultaneously, may be necessary.

However, do not use more than one cuff at a time if you have heart failure, post-infarction state, cardiomyopathy, or uncontrolled high blood pressure.

The Power Q-2200 allows you to set the most important treatment parameters, making it ideal for mild and moderate lymphedema, as well as home maintenance therapy for varicose veins, post-thrombosis conditions, and more.

The device supports leg (M-L), arm (M-L), and trunk (M-L shorts) cuffs. To choose the right size, see the sizing chart and measure your circumference!

Up to three cuffs (each with 4 chambers) can be connected simultaneously. The pressure is the same in every chamber.

The device offers 4 programs (A, B, C, D). Program B is the gentlest, followed by A, then D; C is the strongest. Be patient: start with B or A, and only switch to stronger settings if needed. All programs can be used for muscle regeneration in athletes or post-stroke recovery.

The programs inflate from bottom to top: first the lower chamber inflates, then the next. Each inflated chamber applies pressure on the underlying tissue, "squeezing out" edema (lymph). Treatment time can be set to 15 or 30 minutes; the device automatically turns off when time ends.

Treatment guide

Follow your doctor or therapist's instructions.

General guidelines: Compression therapy aims to improve blood and lymph circulation without excessive pressure - too much pressure is harmful. Use program A or B for initial treatments. Set pressure to 40 or 60 mmHg. Start with 15 minutes; observe results and increase to 30 minutes if needed. It's better to have multiple 30-minute sessions than infrequent long ones. Limit daily treatment to 120 minutes. Be patient - allow 3-4 sessions to assess changes; avoid frequent adjustments.

Steps to set the device

1. Set treatment time: press "T" button to choose 15 or 30 minutes.

2. Enable/disable airchambers: by default, all chambers inflate. To exclude chambers, touch the corresponding leg symbols; illuminated LEDs indicate active chambers.

3. Set treatment pressure: use "+" and "-" buttons. Selected value shows on display. All active chambers inflate at the same pressure.

4. Select program: choose from 4 intensity programs. From gentlest to strongest: B, A, D, C. Program C provides the strongest, fastest treatment, but may not suit everyone. Use B if no special instructions.

5-6. Set intervals: for programs C and D, press interval button repeatedly to set 5, 10, or 30-second breaks between cycles.

6. START/STOP button: press to start treatment with selected settings; press again to stop.

Risks of incorrect treatment

For lymph and venous circulation support, 40-60 mmHg is sufficient. International medical studies recommend this range. Higher pressure can cause micro-injuries leading to tissue hardening over time. Excessively strong treatments can worsen your condition - avoid high pressure!

If you have heart disease, heart failure, cardiomyopathy, or post-infarction conditions, proceed with caution. Never exceed 40-50 mmHg and use only one cuff at a time; multiple cuffs can overload circulation and cause heart problems.

Avoid treating malignant tumor tissue directly, as it may promote spread. However, you may safely treat legs in case of thyroid cancer.

Expected results

Regular use of the Power Q-2200 can lead to:

• Reduced swelling: effectively lowers limb edema.
• Pain relief: alleviates discomfort from swelling and venous insufficiency.
• Improved mobility: increases joint range of motion by reducing swelling and stiffness.
• Prevention of complications: lowers risk of venous ulcers and thrombosis.

Treatment duration and frequency

Frequency and duration depend on condition and individual factors. Generally, a session lasts 20-60 minutes and can be repeated once or multiple times a day if needed. For best results, regular use over several weeks is recommended. Consult a lymph therapist for a personalized plan.

Risks and contraindications

Machine compression therapy may be unsuitable in certain cases or require caution and lower pressure.

Contraindications:

• Severe peripheral arterial disease (PAD): elevated pressure can harm patients with significant arterial circulation problems.
• Severe heart failure: fluid shifts require limited area and lower pressure.
• Active deep vein thrombosis (DVT): compression may dislodge clots; strictly contraindicated.
• Acute skin infections (e.g., erysipelas): massage may spread pathogens and worsen inflammation.
