Power Q-8060 compression therapy unit

1 143.00 €

Power Q-8060 compression therapy unit

CE / MDR

Wonjin

Download: Instruction for Use

In stock

1 143.00 €

Professional level compression therapy unit treating 6 airchamber cuffs. Suitable for home use but primarily recommended for compression therapists and beauty salons due to its capabilities. Treatment cuffs for arm, leg, hip, and waist therapy.

Price includes: Power Q-8060 device (1 pc); excluding treatment cuffs.

Details

The Power Q-8060 is suitable for treating numerous conditions

High expertise compression therapy unit providing treatment with a total of 18 airchambers. It can connect simultaneously 3 treatment cuffs, each with 6 airchambers.

Suitable for treating and improving many diseases and symptoms in mild, moderate, and severe conditions alike.

Excellent for both clinical and home treatment of lymphoedema. Usable at any severity level and even with ulcer complications. Not only ideal for home use but also suitable for clinics.

Effective for edema of arms and legs

Optimal for arm swelling after breast removal (mastectomy)

Effectively relieves heavy leg sensations and tight pains caused by varicose veins

Can be used during pregnancy for reducing leg swelling caused by varicose veins

Excellent for post-thrombosis condition (starting 3 months after acute phase)

With its reverse (top-down) program, it can treat peripheral artery disease symptoms, improve foot microcirculation, and help delay or avoid amputation. Also applicable for diabetic feet.

Regular use helps stimulate blood circulation and prevents thrombosis in cases of limb paralysis or reduced mobility

Reduces cellulite symptoms (with leg and waist cuffs)

Improves muscle recovery after sports – stimulates metabolite clearance and accelerates regeneration

Provides relaxing and pleasant massage for tired bodies. Refreshes and calms.

General information about the Power Q-8060 compression therapy unit

18 airchambers professional compression therapy unit optimized for clinical and home lymphoedema treatment and cosmetic applications.
The device enables all settings recommended for medical lymphoedema therapy today.
Supports 6 airchamber cuffs. Each airchamber pressure is independently adjustable! This ensures effective lower limb lymphoedema treatment.
Includes 10 programs (A1-A2-B1-C1-C2-C3-D1-D2-E1-E2).
Programs A1, C1, D1, and E1 are recommended for lymphoedema, varicose veins, and post-thrombosis treatment.
A1 is the mildest, C1 the strongest, and D1 intermediate strength.
Start with A1 or E1 program – if insufficient, switch to stronger programs.
The same programs apply for improving muscle recovery in athletes and post-stroke patients.
Programs A1-B1-C1-C2-C3-D1-E1-E2 inflate from bottom to top; the lowest airchamber inflates first, then the next.
Programs A2-D2 run top-down and should never be used in lymphoedema!
Programs A2-D2 are suggested for some stages of peripheral arterial disease and postoperative states to improve microcirculation.
Can inflate one, two, or even three cuffs simultaneously with the same program (e.g., both legs and waist, or leg-waist-arm).
Most treatments start with 40-60 mmHg pressure and 15 minutes duration; monitor effect and after several sessions, increase pressure or preferably treatment time if needed.
Excessive pressure may cause hardening of the edematous area; avoid high pressure!
For heart diseases, heart failure, cardiomyopathy, or post-heart attack, use even lower pressure and only one cuff at a time!

Risks and contraindications of compression therapy

In severe heart diseases (e.g., cardiomyopathy, heart failure) and drug-resistant high blood pressure, compression therapy should only be used if lymphoedema coexists, and treatment must be cautious with low pressure!

Heart patients should never exceed 50-60 mmHg pressure as high pressure can push blood from veins, overloading the heart! If you experience temple pulsation, rapid heartbeat, or increasing headache during treatment, the pressure is too strong!

Only use one cuff at a time for heart disease patients; do not treat both legs simultaneously. Never use three cuffs simultaneously for heart patients!

After total uterus and pelvic lymph node removal due to tumors (e.g., Wertheim surgery), compression therapy can only be applied cautiously under specialist supervision in case of lymphoedema!

Use only with oncologist approval for tumor-related leg swelling.

Technical specifications of the Power Q-8060 compression therapy unit

Display: Graphic LCD
Number of programs: 10 types of inflation patterns
Adjustable cuff pressure: 0-200 mmHg range
Pressure adjustable individually per airchamber
Adjustable treatment time: 0-99 minutes
Pressure hold time: 0-15 seconds
Interval between cycles adjustable from 0-60 seconds
Cuff type: 6 airchambers
Device weight: 7.5 Kg

Info

Area of application :

Leg swelling, Arm swelling, Lymphoedema, Lipoedema, Cellulite, Venous insufficiency, Post-thrombotic syndrome, Inactivity oedema, Improve muscle recovery, Pregnancy varicose veins, Wellness

Intended use :

Clinical use, Physiotherapy practice, Massage parlour

Weight:

7.5 kg/db

Cuff options

You can connect 6 airchamber treatment cuffs to the Power Q-8060 Premium device, up to a maximum of 3 cuffs simultaneously (for example, two legs and 1 arm or 2 legs and 1 waist).

Choose cuffs according to your symptoms!

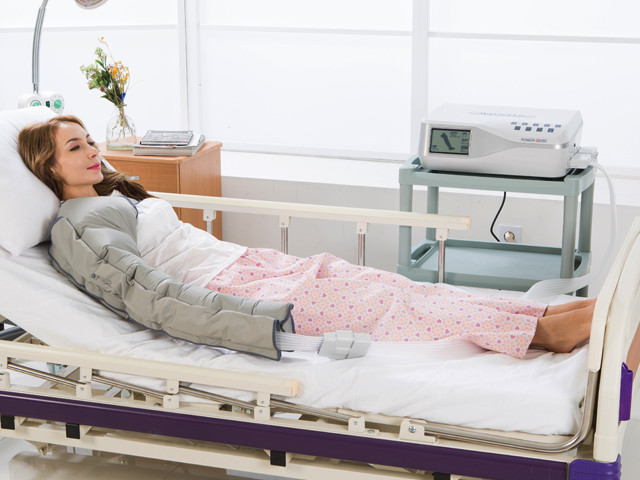

Arm cuff

Lymphoedema affecting the arm is usually unilateral, so one cuff may be sufficient. If you bought the device as an athlete for muscle recovery, it is worth buying 2 arm cuffs to treat both arms simultaneously. The arm cuff has a Velcro strap to secure it under the opposite underarm.

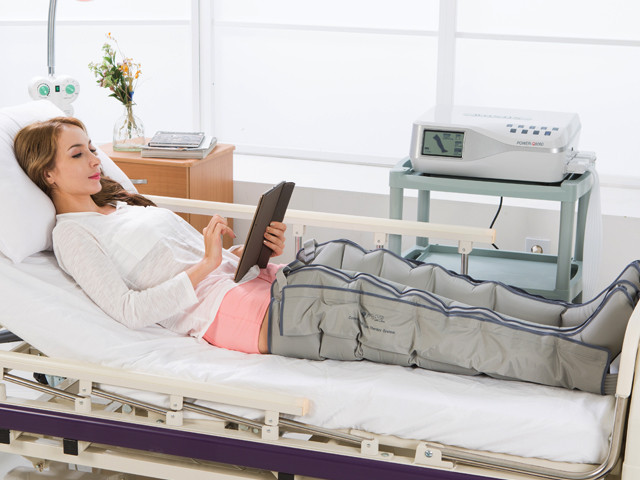

Thigh-length leg cuff

This cuff is excellent for treatment of leg lymphoedema, varicose veins, post-thrombosis conditions, and muscle recovery for athletes. Depending on whether your edema affects one or both legs, you can buy one cuff or a pair. Sizes can be adjusted with extenders if the standard sizes are unsuitable.

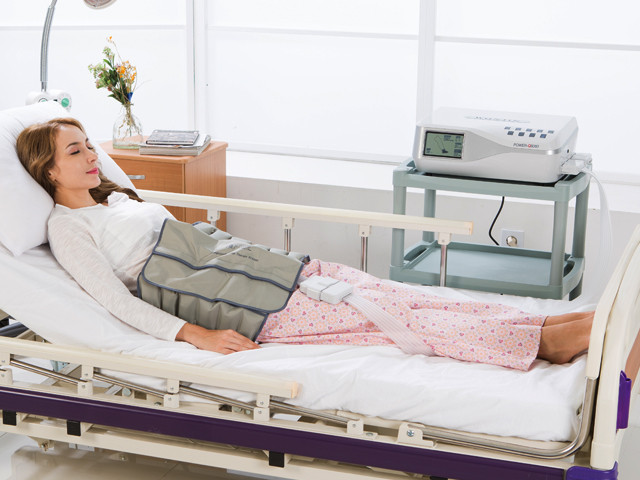

Waist cuff

Purchase this if your lymphoedema extends up to your thigh. In such cases, it is recommended to treat your waist along with the legs. The cuff should be worn like a belt, starting where the top of the thigh cuff ends. It is also suitable for cellulite and orange peel skin treatment.

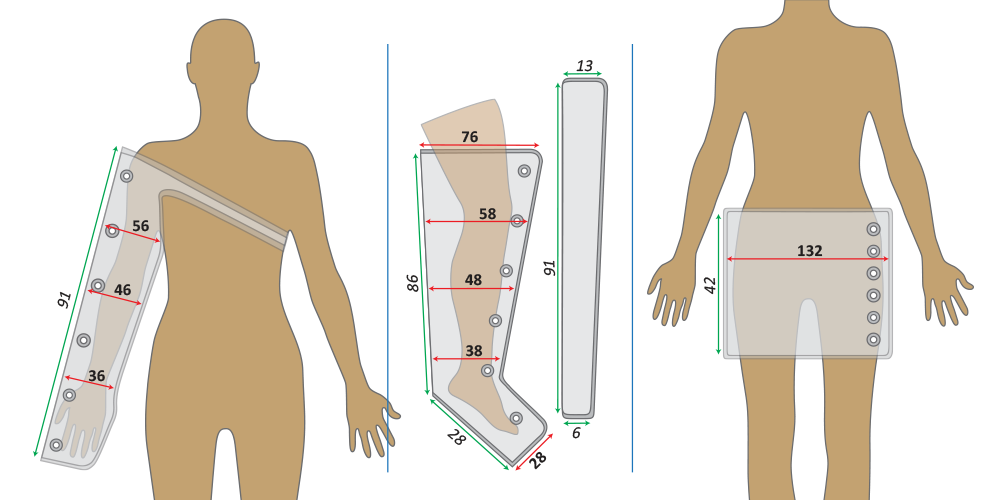

Green line and italic numbers: length in cm • Red line and bold numbers: circumference in cm

Cuff combinations

In some cases, combining cuffs, i.e., using multiple cuffs simultaneously, may be necessary. These combinations are contraindicated in heart failure, post-infarction, cardiomyopathy, or resistant high blood pressure.

Waist and leg cuffs

For lymph and fat edema (lymphoedema and lipedema), as well as cosmetic treatments (cellulite, orange peel, enhancing cavitation effects). This combination is cheaper but somewhat less effective than alternatives.

Usage

How to set up the Power Q-8060 device?

Perform treatments following your doctor or therapist's instructions.

General guidelines for treatment:

The goal of using the compression therapy unit is to improve blood and lymph circulation, which does not require high pressure; in fact, high pressure is detrimental.
Start the initial treatments with program A1.
Set treatment pressure so that the lowest airchamber has the highest pressure, decreasing progressively upward. For example: 60-60-50-50-40-40 mmHg. Recent studies show this ensures the most effective treatment for leg lymphoedema.
Set pressure hold time to 8-10 seconds. This allows the device to complete a full inflation cycle within one minute. Longer hold times provide more effective lymphoedema therapy than short ones.
Start with 20 minutes treatment time.
Monitor the effect of the treatment and increase treatment time to 30 minutes if necessary. It's better to have more frequent 30-minute sessions than infrequent long ones. The maximum daily treatment time should be 120 minutes total.
Be patient! Effects can only be assessed after 3-4 treatments, so frequent changes during each session are not useful.

Condition	Pressure (mmHg)	Treatment time (minutes)	Cuff
Arm lymphoedema	40-60	20-30	Arm
Leg lymphoedema	40-60	20-30	Leg, waist, pant
Fat edema (lipedema)	50-85	30-40	Leg, pant
Venous insufficiency	40-50	30	Leg, mid-thigh leg
"Heavy leg" sensation	40-50	30	Leg, mid-thigh leg
Varicose ulcer	40-50	40-60	Leg, mid-thigh leg
Post-thrombosis condition	50-60	50-60	Leg, mid-thigh leg
Muscle recovery after training	80-90	20-30	Leg, pant, arm
