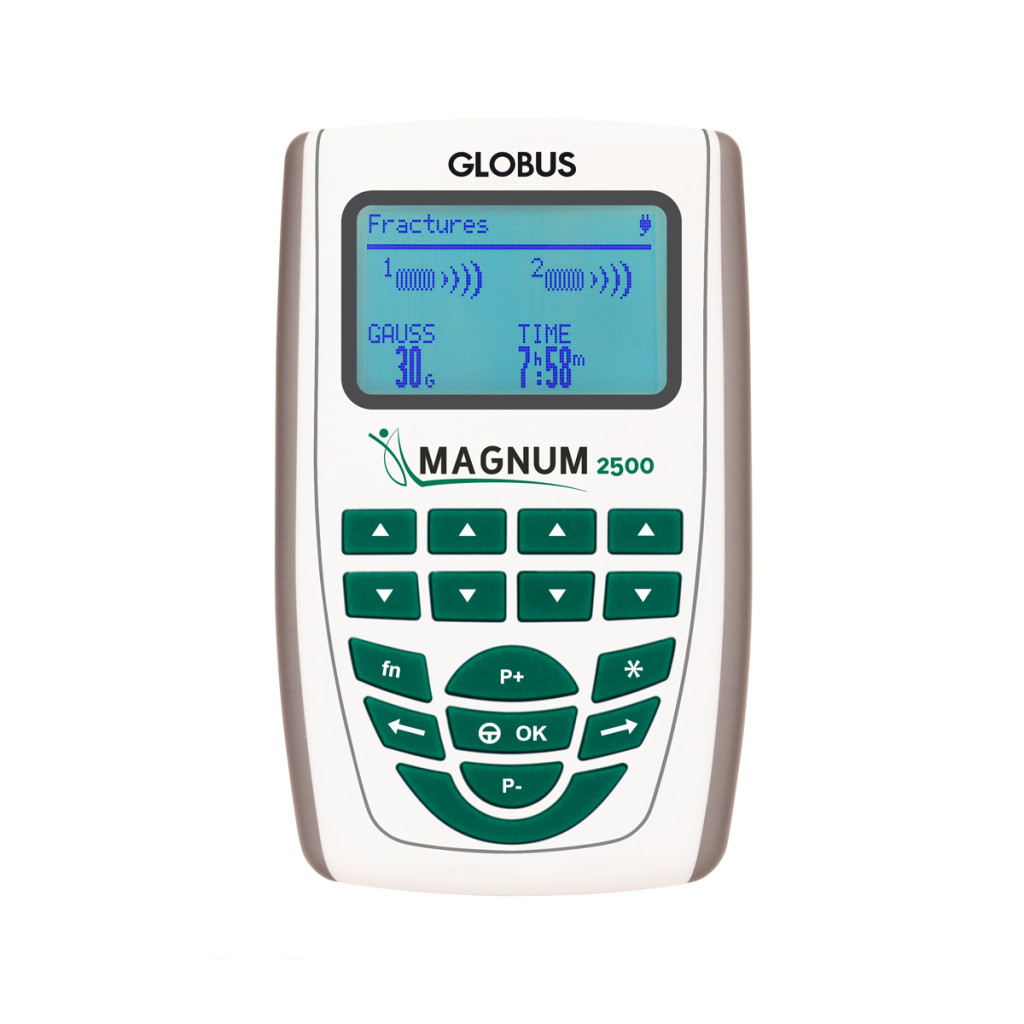

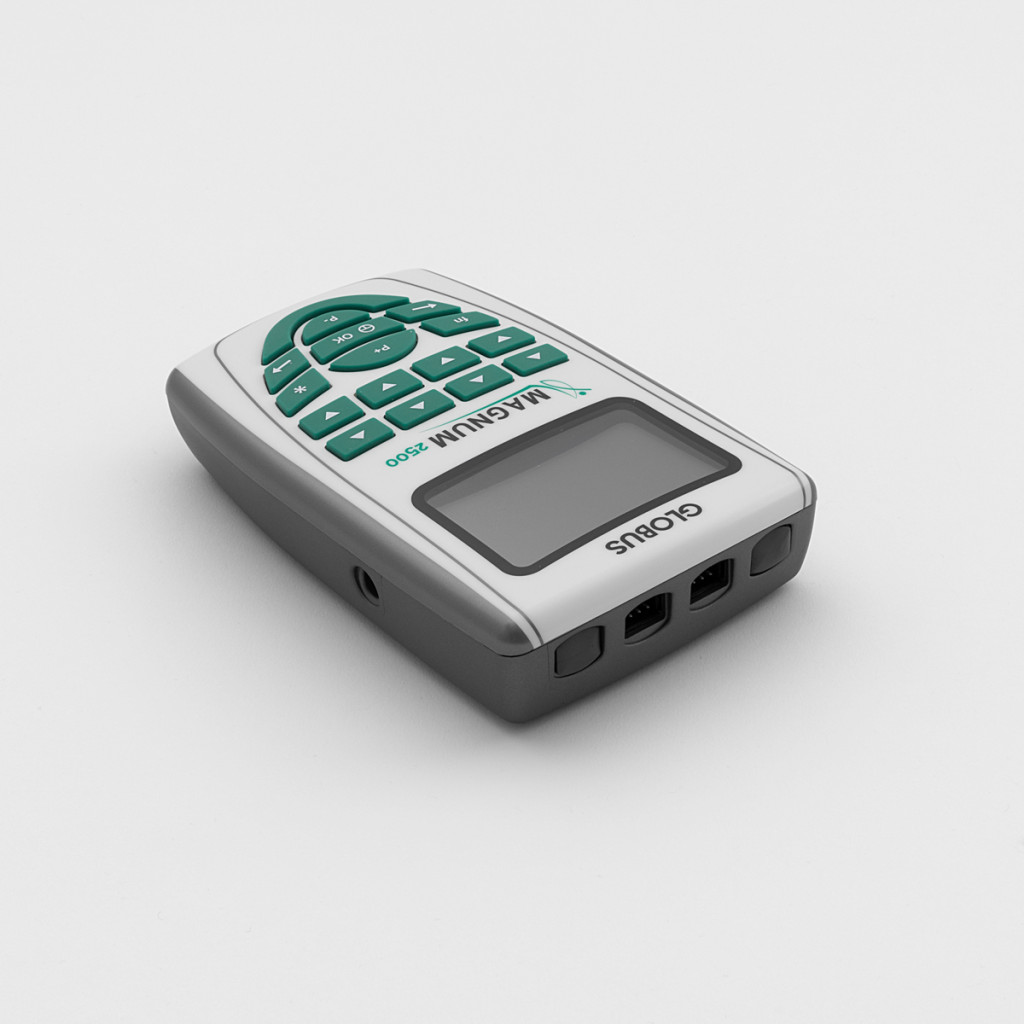

Magnum 2500 Magnetotherapy Device

Optional Accessories

Several types of magnetic coils are available for the Magnum devices, each suitable for different treatments. Choose based on the area and condition that needs treatment.

Magnum Flexible Applicator, Standard

The manufacturer includes one (or two on some devices) 30×10 cm flexible magnetic coil by default.

It contains two magnetic coils with opposite polarity, making it ideal for fractures, inflammation, and injuries of bones in the arm and leg—such as hand, foot, wrist, elbow, shoulder, ankle, knee, and hip. Apply it like a blood pressure cuff around the treatment area. This design ensures the two coils are positioned on opposite sides of the bone or joint, connecting their magnetic fields.

Magnum Flexible Applicator, Large

An optional 40×15 cm flexible magnetic coil for larger treatment areas.

It contains four magnetic coils with the same polarity, making it ideal for treating the spine, pelvis, or hip, or for longitudinal femur fractures. Instead of wrapping, lay it along the spine. The coils create a wide but shallow magnetic field.

Magnum Soft4 Applicator Pad

This applicator contains four coils in soft foam housing. The smooth side of the pad is the coil's south (S) pole; the opposite side with a loop for the strap is the north (N) pole.

Measuring 25×25 cm, it's ideal for the back, waist, pelvis, and hip. It's a good solution for conditions like tennis elbow, epicondylitis, carpal tunnel syndrome, or tenosynovitis when placed under the affected limb, allowing treatment even while working at a desk.

Magnum Pocket Pro Applicator

This applicator contains two coils in a zippered, replaceable fabric cover. The south (S) and north (N) poles are clearly marked. It's suitable for smaller areas. If you have multiple Pocket Pros, place them side by side with the same poles for a larger area or on opposite sides for fractures or joint injuries.

Fasten with the hook-and-loop strap.

Magnum Applicator Pads

Three types of pads are available.

MAT 100 Pad

Measuring 70×45 cm, it contains four coils in fabric and memory foam. It can be placed on a chair or armchair for seated or reclining treatment—ideal for femur, hip, pelvis, lower back, back, shoulder, and neck. Great for long, multi-hour sessions!

TotalBody 200 and 400 Applicator Pads

These large pads are recommended for long, multi-hour treatments when you need to treat the whole body or most of it at once, such as for osteoporosis, multiple joint inflammation, spinal issues, allergies, immune support, or improved circulation.

The TotalBody pad measures 70×180 cm and can be placed on a bed under the sheets, allowing treatment even during sleep. It's actually four smaller units.

In TotalBody 200, only two of the four sections contain coils (4 each), allowing various configurations.

TotalBody 400 has coils in all sections (4 each) for full-body treatment.

Technical Specifications

• Performance: 2 independent channels, 160 Gauss each, 320 Gauss total output
• Menu languages: Hungarian, English, Spanish, French, German, Italian
• Power source: 220 V mains
• Frequency: adjustable between 5 and 200 Hz (parameter only modifiable during programming)
• Duty cycle adjustable: 5-50%
• 52 predefined programs
• 5 user-programmable slots
• Mains and battery operation – battery not included, sold separately
• Display: the large, bright graphic display allows overview of all parameters
• Device class: Class IIa
• Compliance: complies with 93/42/EEC and 2007/47/EC directives
