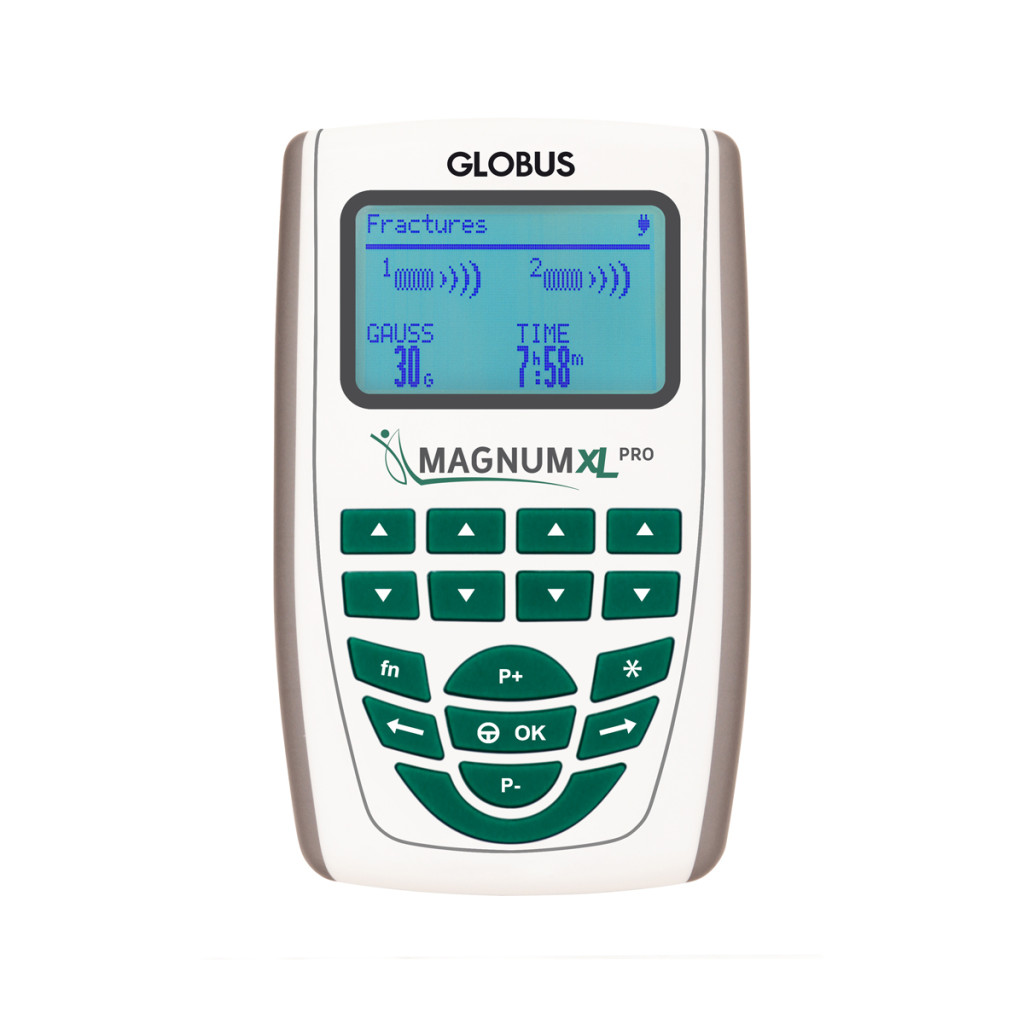

Magnum XL Pro Magnetotherapy Device

Optional Accessories

Various magnetic coils are available for Magnum devices, each suited for different treatments. Choose based on the area and condition you need to treat.

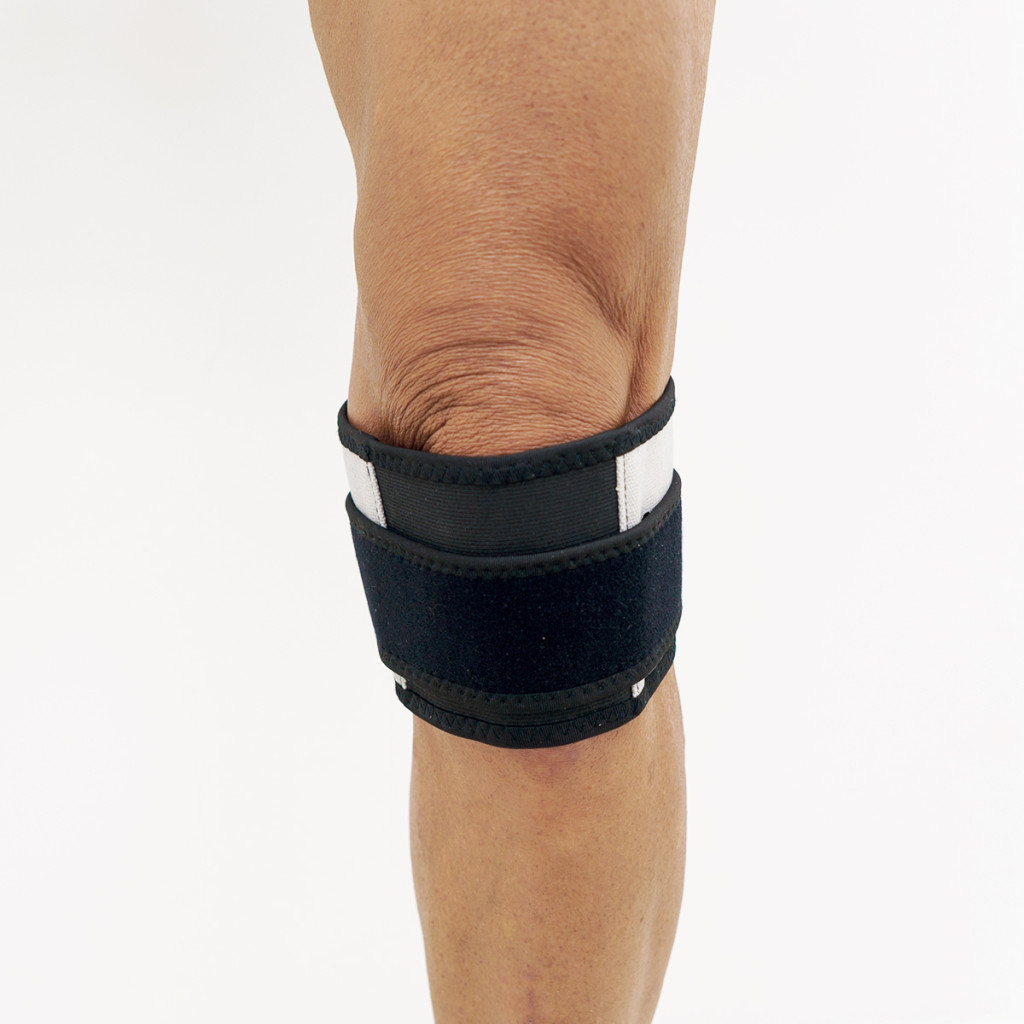

Magnum Flexible Applicator, Standard

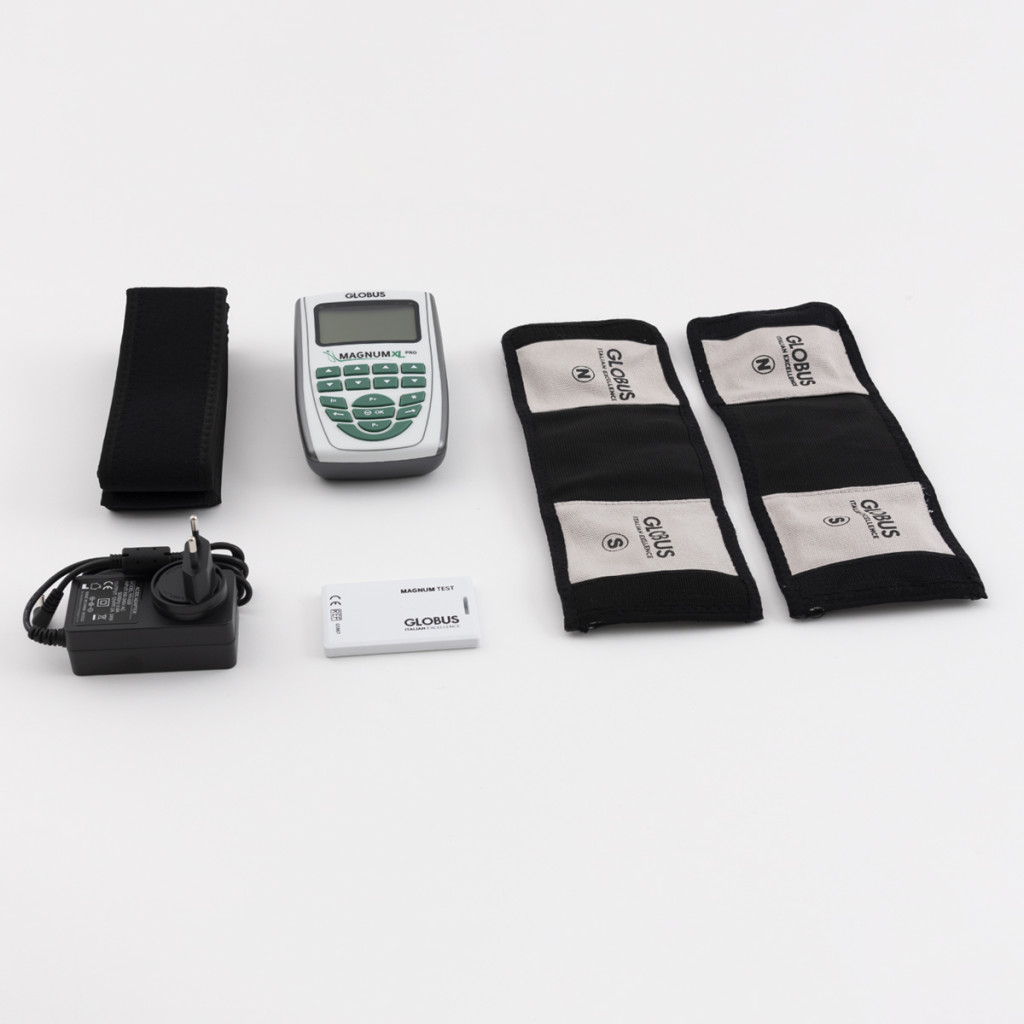

The manufacturer includes one (and on some models two) 30x10 cm flexible magnetic coils by default. This applicator contains two coils with opposing polarity, making it ideal for treating fractures and inflammations of bones in the arm and leg, as well as injuries of the hand, wrist, elbow, shoulder, ankle, knee, and hip. It should be wrapped around the treatment area like a blood pressure cuff so that the two coils are positioned on opposite sides of the bone or joint, allowing their magnetic fields to connect.

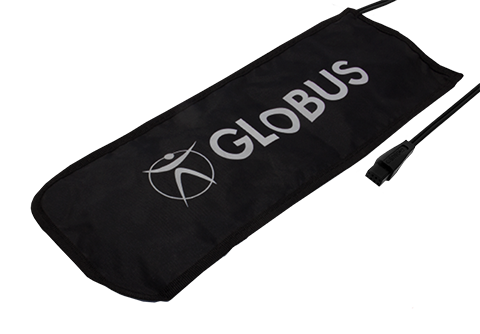

Magnum Flexible Applicator, Large

A 40x15 cm flexible magnetic coil for large-area treatments is available as an option. It contains four coils with the same polarity, making it especially suitable for treating the spine, pelvis, and hip, or longitudinal fractures of the femur. This cuff is laid flat along the spine rather than wrapped around. The coils create a large-area but not very deep magnetic field.

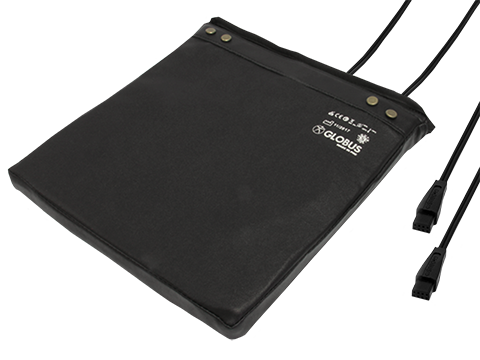

Magnum Soft4 Therapy Mattress

This applicator contains four coils encased in soft foam. The smooth side of the cover is the south (S) pole of the coil, while the opposite side with the strap loop is the north (N) pole. Measuring 25x25 cm, it is ideal for the back, waist, pelvis, and hip areas. It can also be used for tennis elbow, epicondylitis, carpal tunnel syndrome, and tendon sheath inflammation by placing it under the affected area, even during desk work.

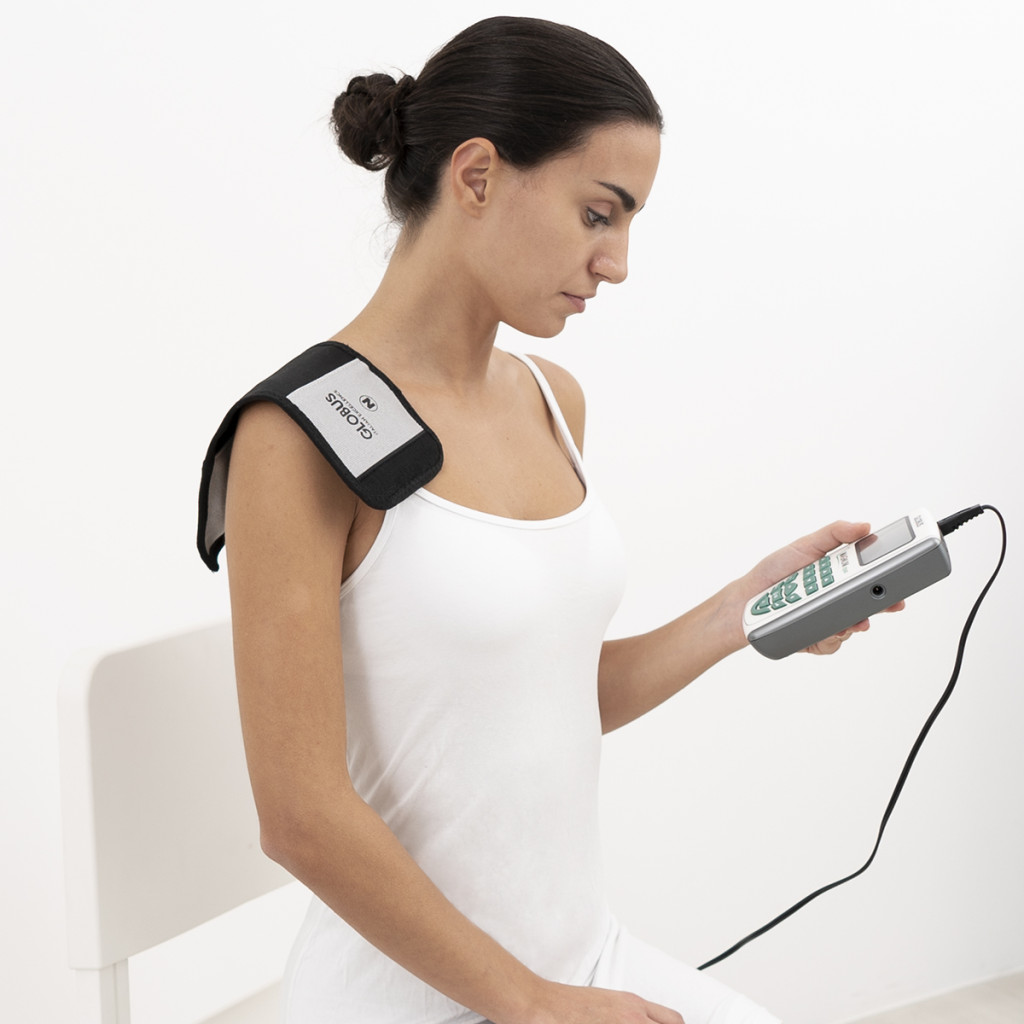

Magnum Pocket Pro Applicator

This applicator contains two coils in a zippered, replaceable fabric cover. The south (S) and north (N) poles are clearly marked on the cover. It is suitable for treating smaller areas. If you have multiple Pocket Pros, you can place them side by side with the same pole to treat a larger area or on opposite sides for fractures or joint injuries. It attaches with a Velcro strap.

Magnum Therapy Mattresses

Three types of mattresses are available.

MAT 100 Mattress

Measuring 70x45 cm, it contains four coils in a textile-covered memory foam layer. It can be used on a chair or armchair for sitting or lying treatments, making it ideal for the femur, hip, pelvis, lower back, back, and shoulder-neck areas. This makes it perfect for long-duration sessions!

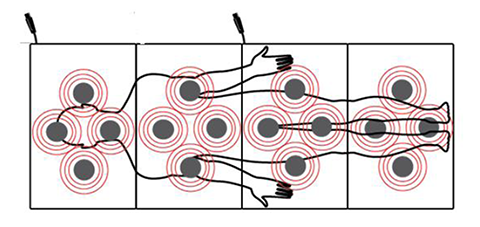

TotalBody 200 and 400 Therapy Mattresses

These large mattresses are recommended for long-duration sessions when you need to treat the whole body or a large portion at once, such as for osteoporosis, multiple joint inflammations, spinal issues, allergies, immune support, or circulation improvement.

The TotalBody mattress measures 70x180 cm and can be placed under the bed sheet for treatments even during sleep. The mattress is actually made of four smaller units. In the TotalBody 200, only two of the four sections contain coils (four each), allowing various configurations. In the TotalBody 400, all sections have coils (four each), ensuring full-body treatment.

Technical Specifications

• Power: 400 Gauss total output
• Menu languages: Hungarian, English, Spanish, French, German, Italian
• Power supply: 220V
• Frequency: adjustable between 5 and 200 Hz (parameter modifiable only during programming)
• Duty cycle adjustable: 5–50%
• 46 predefined programs
• AC and battery operation – battery not included, sold separately
• Display: Large, bright graphic display allows all parameters to be viewed
• Device class: Class II A
• Compliance: Conforms to 93/42/EEC and 2007/47/EC directives
