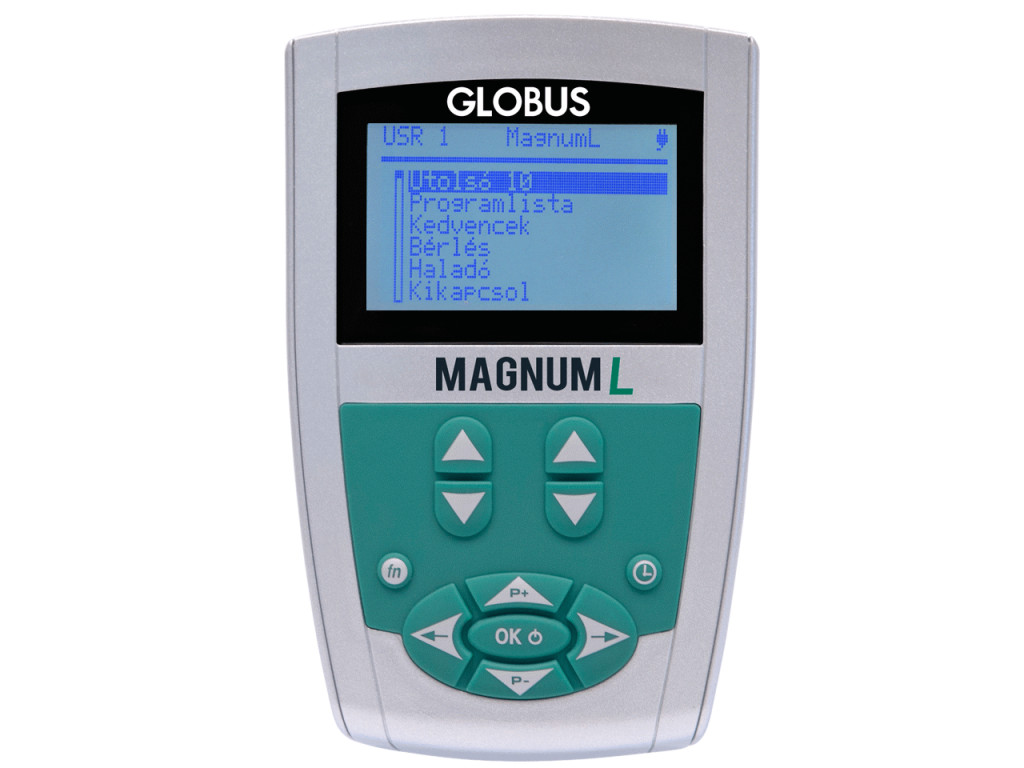

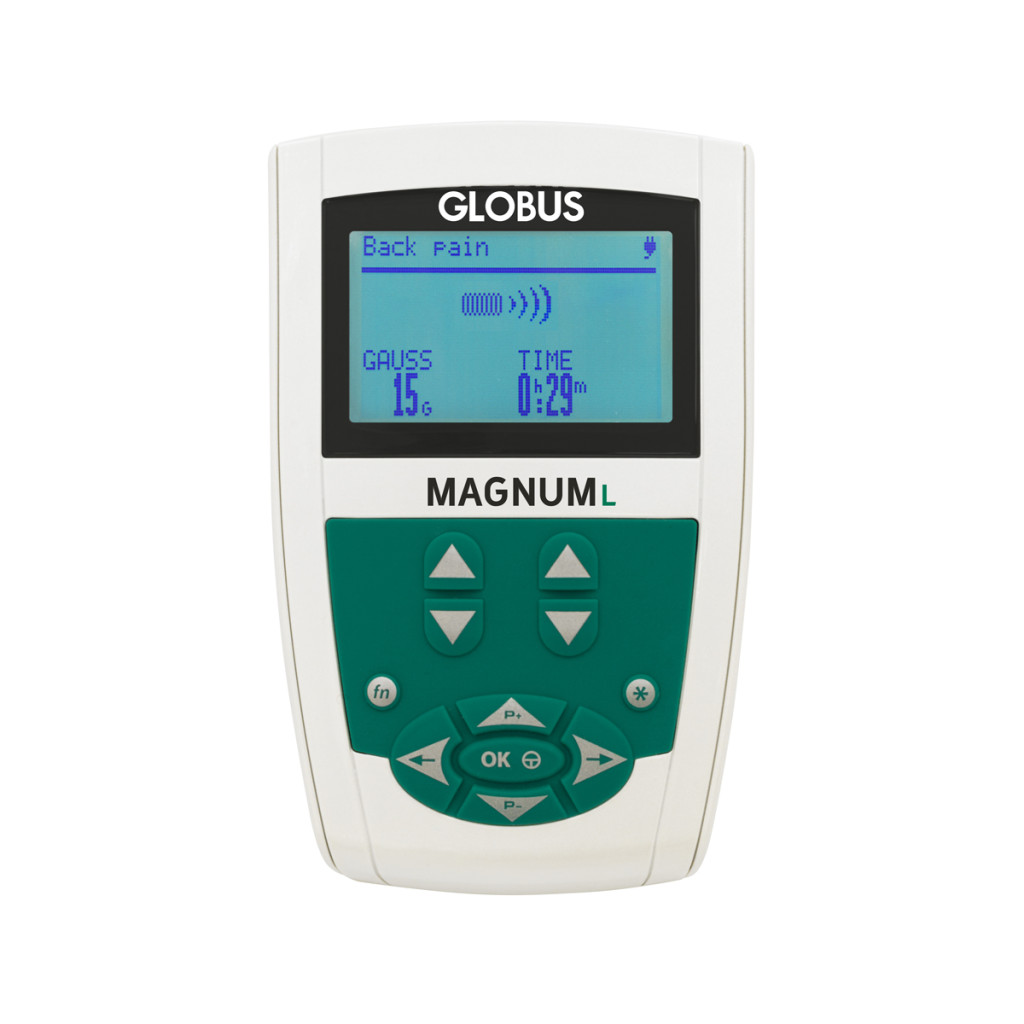

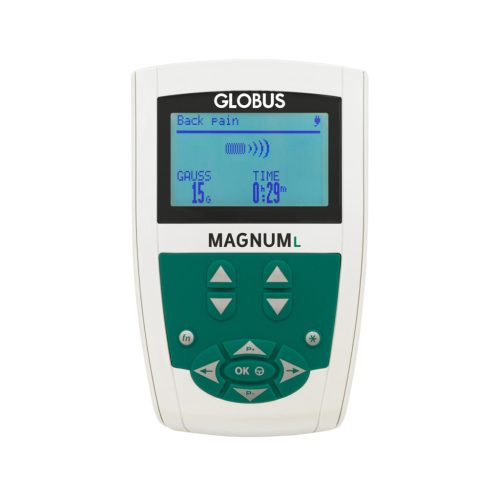

Magnum L Magnetotherapy Device

Optional accessories

Various magnetic coils are available for Magnum devices, each suitable for different treatments. Choose based on the area and condition to be treated.

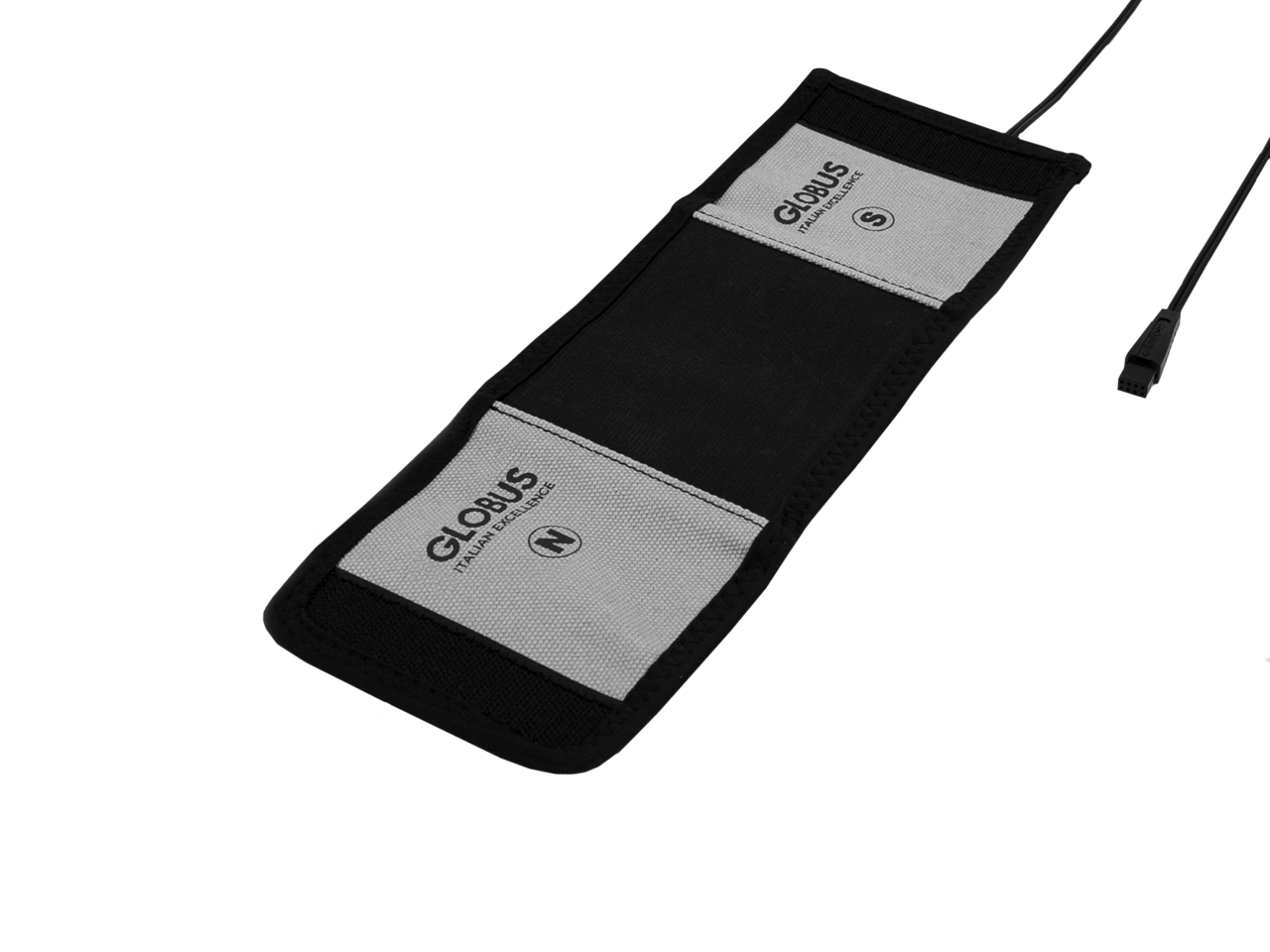

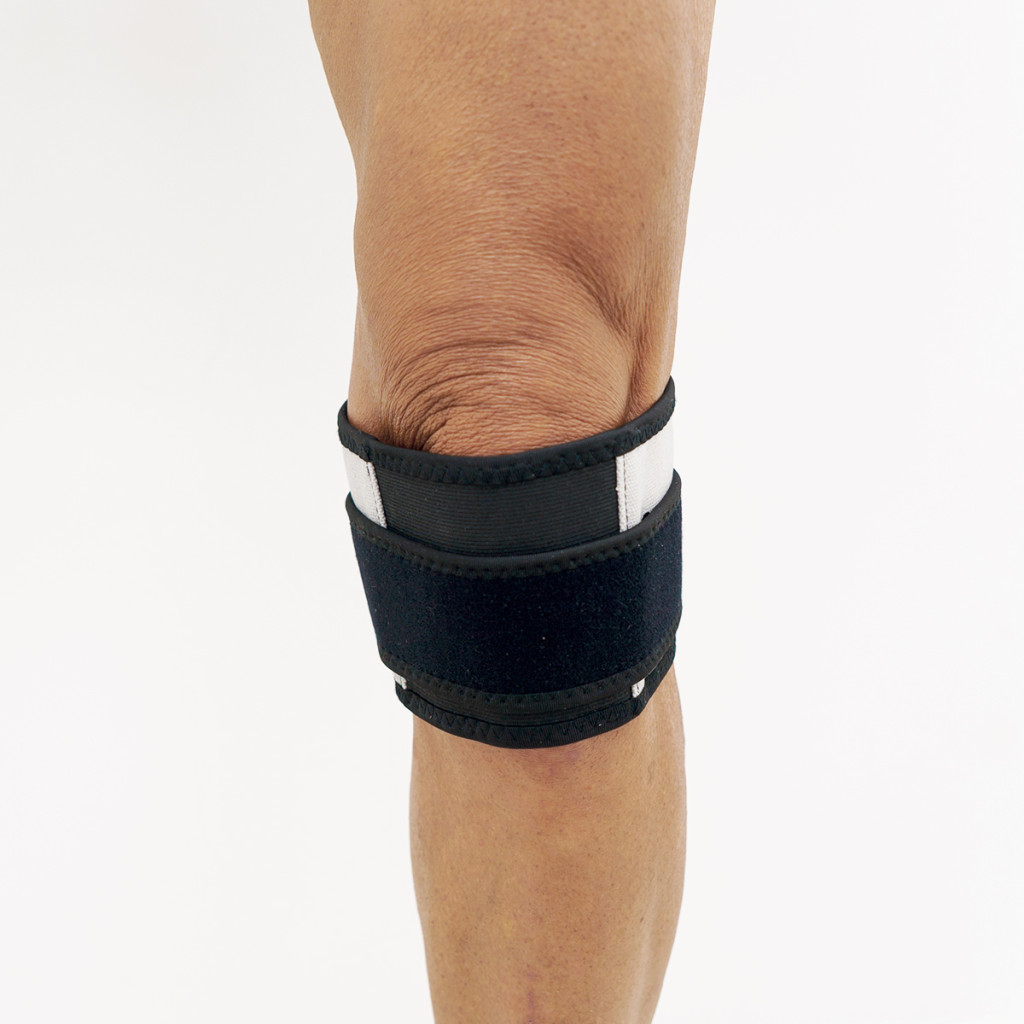

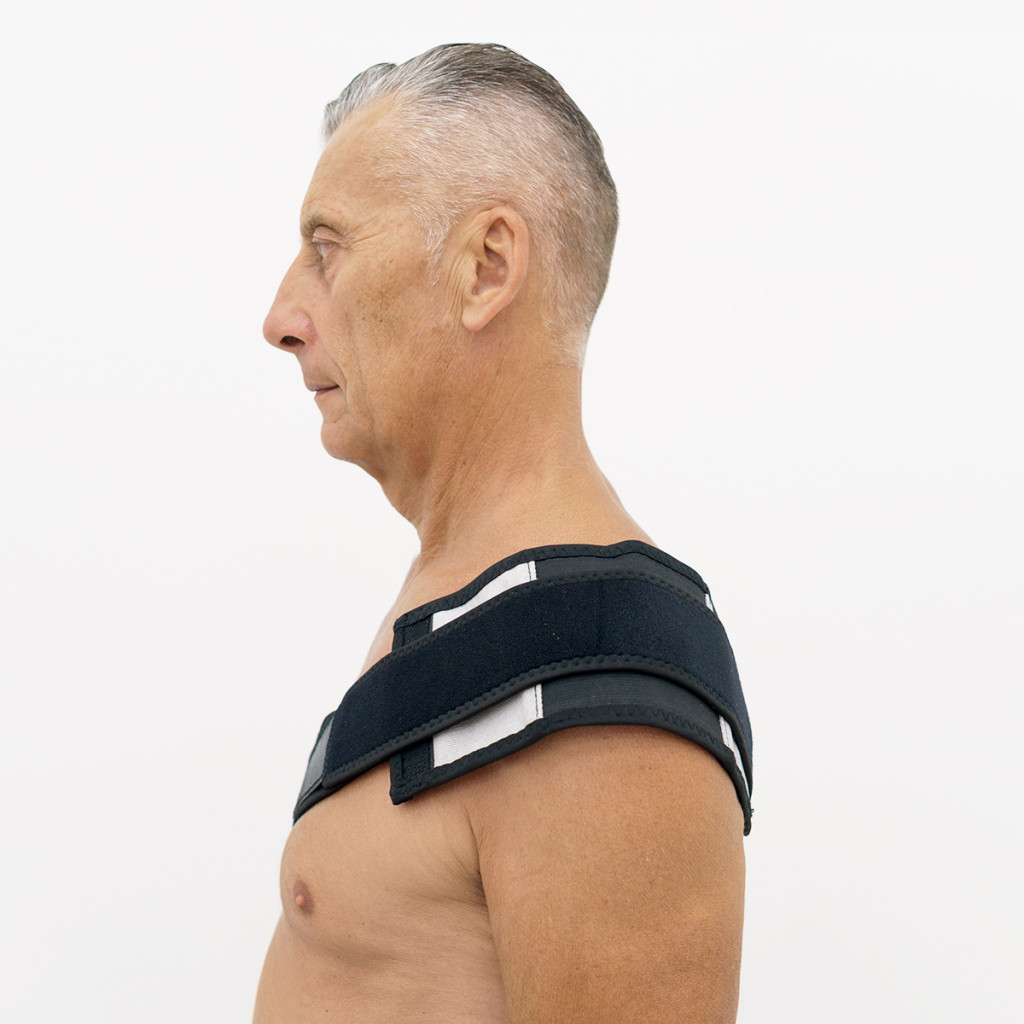

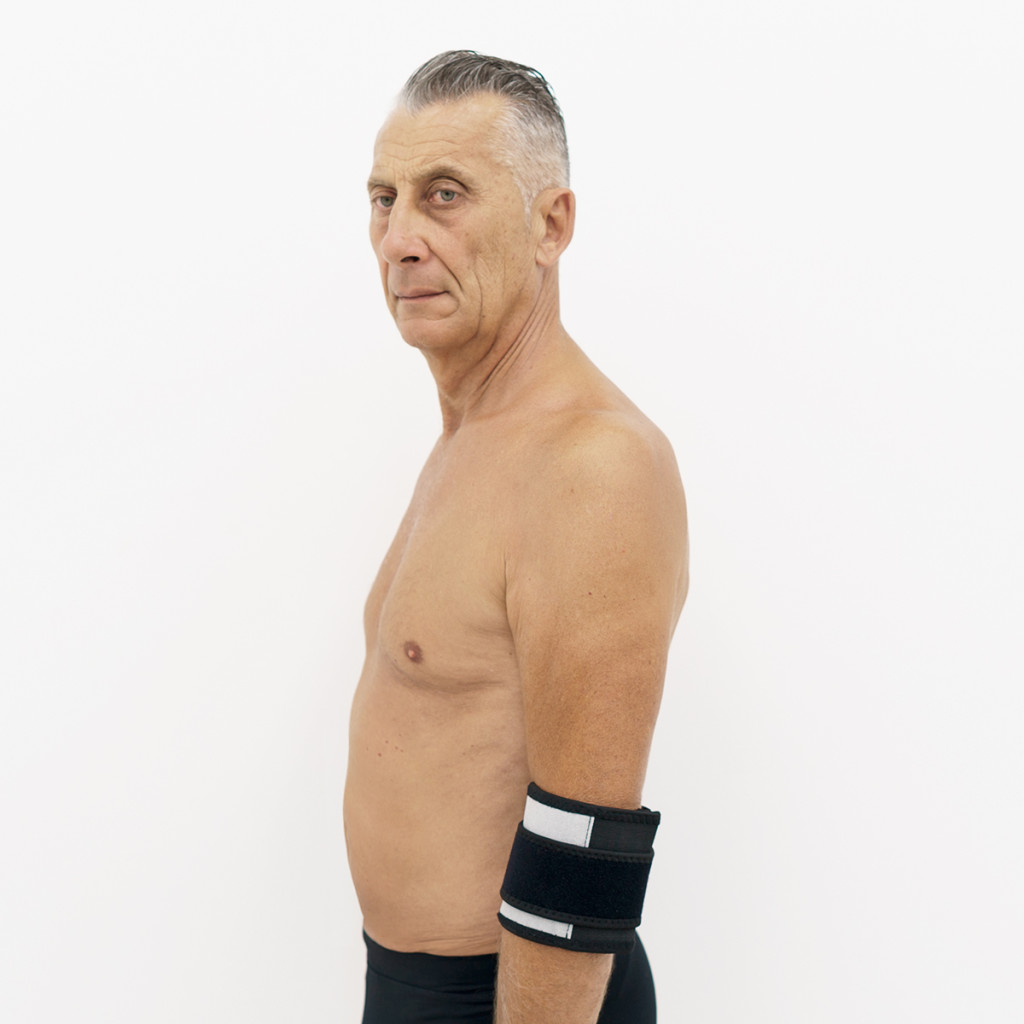

Magnum flexible magnetic coil, standard

The device price includes one (two in some models) 30×10 cm flexible coil. Contains two coils with opposite polarities, ideal for treatment of fractures and inflammations of arm and leg bones, joints like wrist, elbow, shoulder, ankle, knee and hip. Use it like a blood pressure cuff, wrapping around the area so the coils are placed on opposite sides of the bone or joint, and their magnetic fields connect.

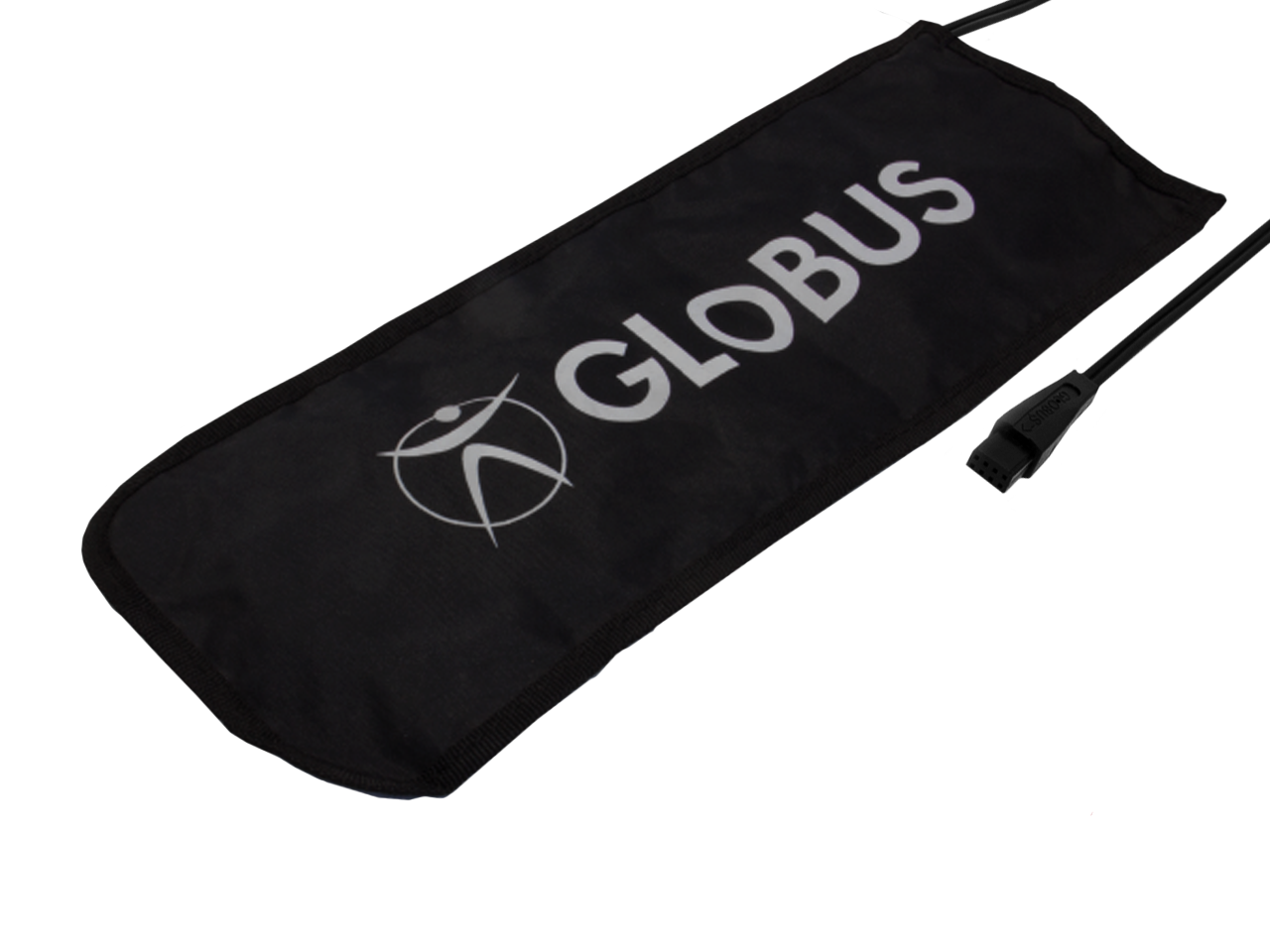

Magnum flexible magnetic coil, large

This optional 40×15 cm flexible coil contains four coils of the same polarity, suitable for spine, pelvis and hip treatment or longitudinal femur fractures. It is used more by laying on the treatment area, rather than wrapping. Provides a wide but shallow magnetic field.

Magnum Soft4 mattress

This applicator contains four coils inside a soft foam cover. The smooth side is the south (S) pole; the north (N) pole is on the opposite side near the strap opening. The 25×25 cm size is ideal for back, lower back, pelvis and hip areas, or conditions like tennis elbow, epicondylitis and carpal tunnel syndrome when placed under the affected area, for example when working at a desk.

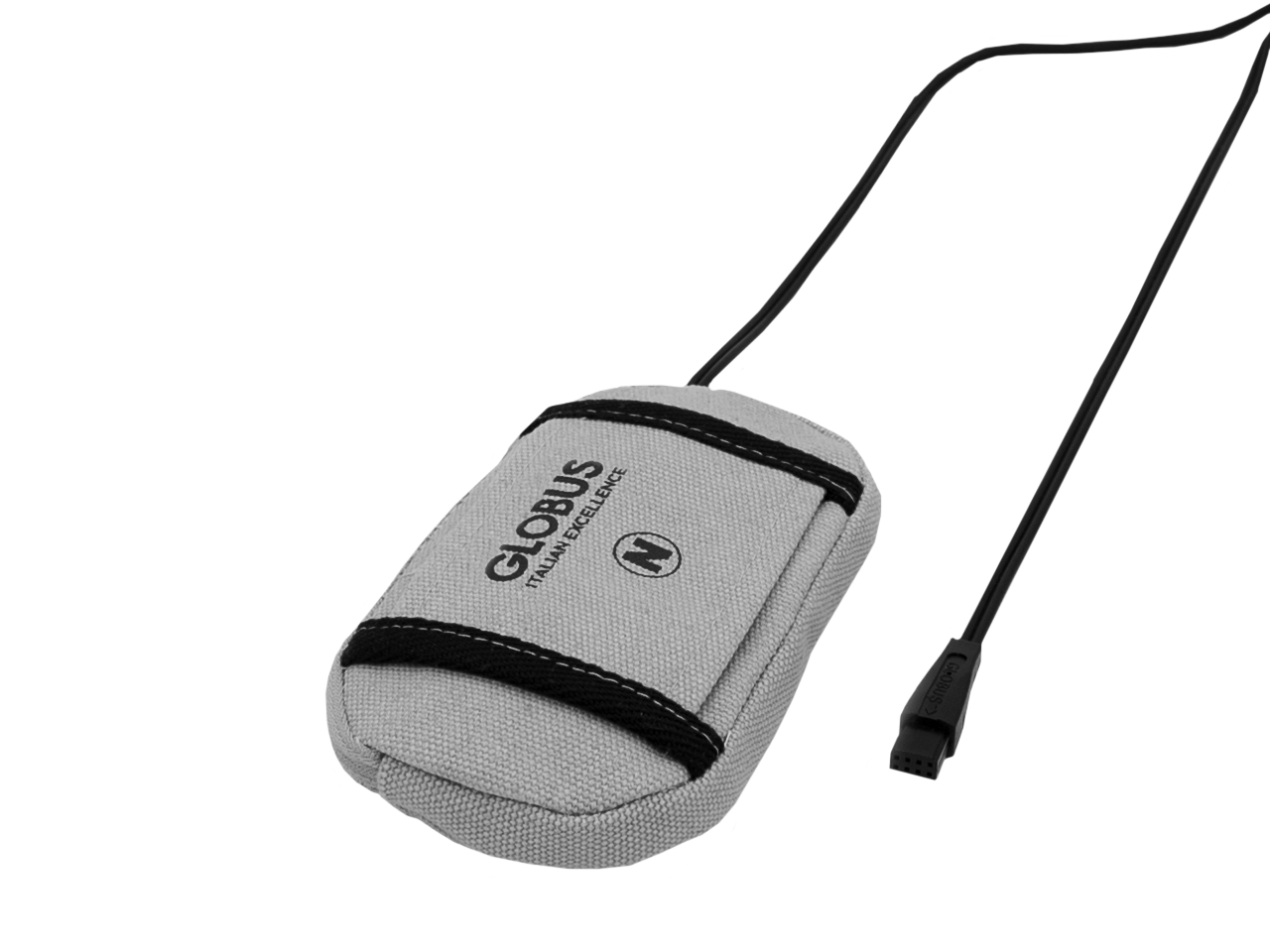

Magnum Pocket Pro magnetic coil

This applicator contains two coils in a zippered, removable textile cover, clearly marked with S and N poles. Suitable for treating smaller areas. Multiple Pocket Pro units can be used side by side with proper polarity for larger areas or oppositely for fracture/joint treatment. Can be fixed with Velcro straps.

Magnum MAT 100 mattress

Size 70×45 cm, four coils embedded in memory foam with fabric cover, usable on chair or sofa for thigh, hip, pelvis, lumbar and shoulder-neck treatments. Ideal for long sessions.

Technical data

• Power: 120 Gauss maximum output
• Menu languages: Hungarian, English, Spanish, French, German, Italian
• Power supply: 220 V
• Frequency: Adjustable 5–200 Hz (parameters programmable only)
• Cycle time: 5–50 %
• Operation: Mains and battery modes – battery not included, available separately
• Display: Large, easily readable graphical display for all parameters
• Classification: Class IIa
• Compliance: Meets 93/42/EEC and 2007/47/EC directives
