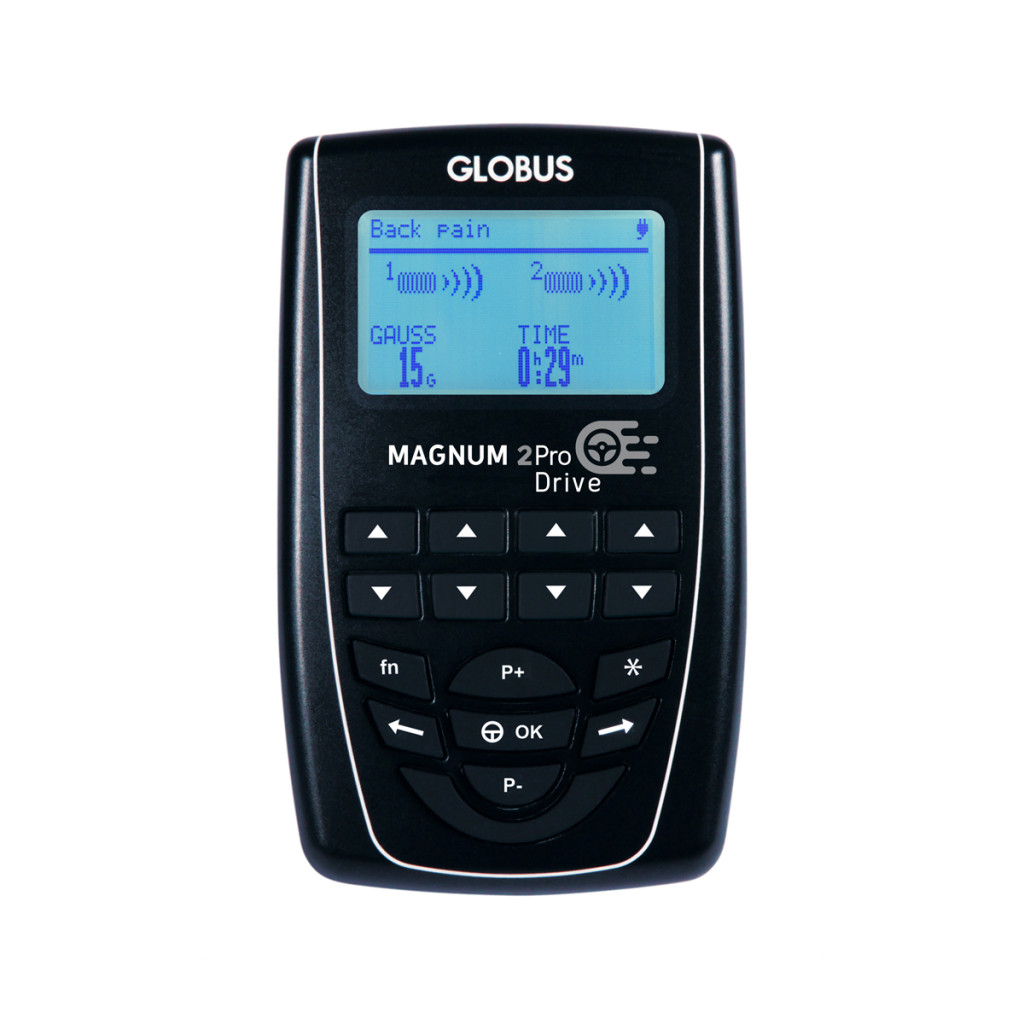

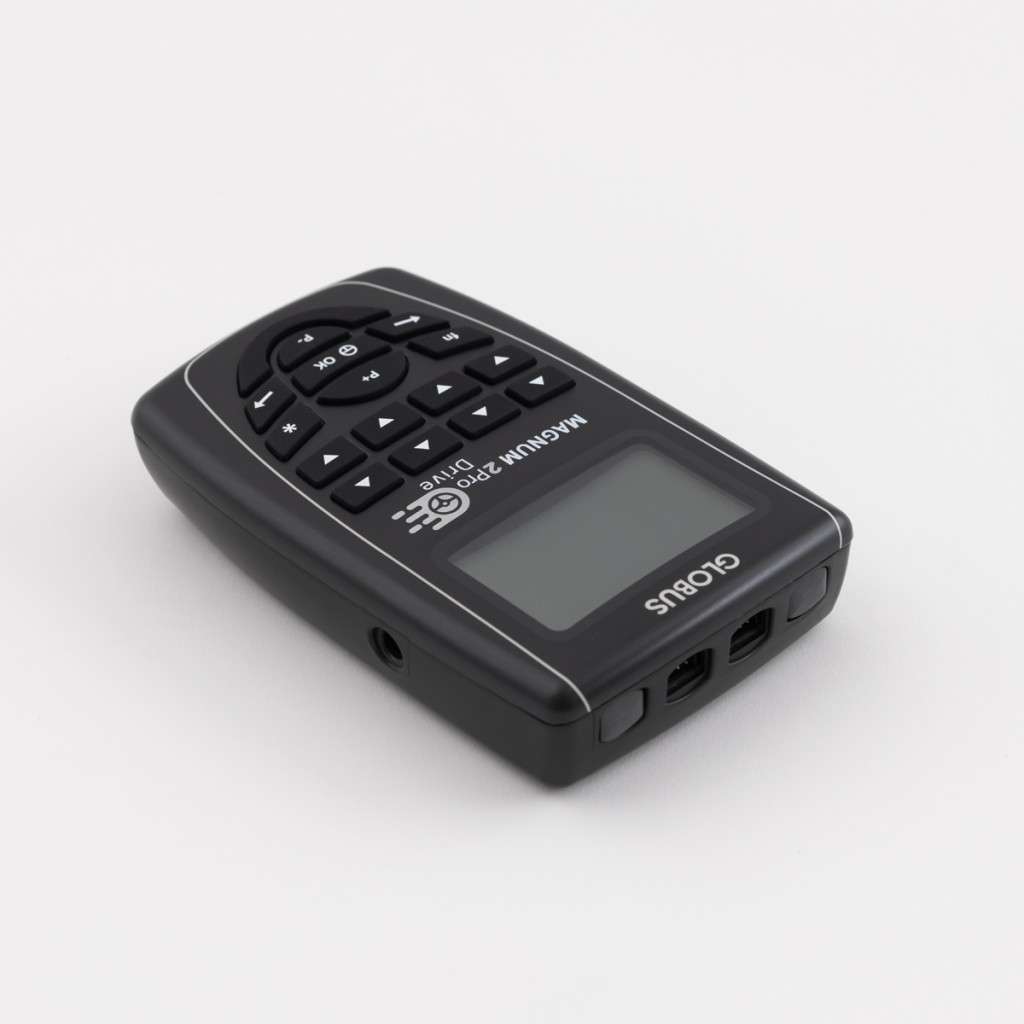

Magnum 2 Pro Magnetotherapy Device

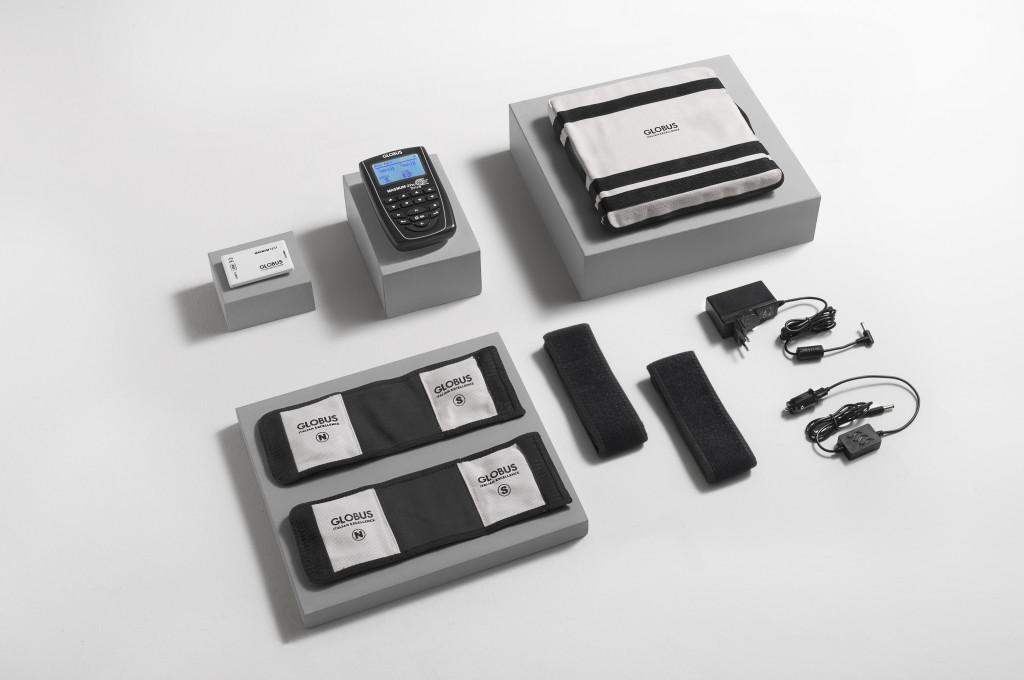

Optional Accessories

Various magnetic coils are available for Magnum devices, each suited for different treatments. Choose based on the area and condition to be treated.

Magnum Flexible Applicator, Standard

The device comes with one (or two on some models) 30×10 cm flexible coil. It contains two coils with opposite polarity, ideal for treating fractures and inflammations of arm and leg bones, joints like wrist, elbow, shoulder, ankle, knee, and hip. It’s applied like a blood pressure cuff, encircling the area so coils sit on opposite sides of the bone or joint and their magnetic fields interlink.

Magnum Flexible Applicator, Large

This optional 40×15 cm flexible coil contains four coils of the same polarity, suited for spine, pelvis, and hip treatments, or longitudinal femur fractures. It’s laid along the spine rather than wrapped. It provides a wide but shallow magnetic field.

Magnum Soft4 Mat

This applicator has four coils in a soft foam cover. The smooth side is the south (S) pole; the north (N) pole is on the opposite side near the strap slot. Measuring 25×25 cm, it’s ideal for back, waist, pelvis, and hip areas, or conditions like tennis elbow, epicondylitis, and carpal tunnel syndrome by placing it under the affected area during desk work.

Magnum Pocket Pro Applicator

This applicator contains two coils in a zippered, removable textile cover, with S and N poles clearly marked. Suitable for smaller areas. Multiple Pocket Pros can be used side by side with matching polarity for larger areas or opposite for fracture/joint treatment. It attaches with velcro straps.

Magnum Treatment Mats

Three mat types are available.

MAT 100 Mat

Size 70×45 cm, with four coils in memory foam and fabric cover, usable on a chair or couch for thigh, hip, pelvis, lower back, and shoulder-neck treatments. Ideal for long sessions.

TotalBody 200 and 400 Treatment Mats

These large mats are designed for long, multi-hour treatments covering the whole body or large areas, e.g., osteoporosis, polyarthritis, spinal issues, allergies, immunity boost, and circulation improvement. The TotalBody mat is 70×180 cm and can be placed under bedding for overnight use, consisting of four segments. The TotalBody 200 has coils in only 2 of the 4 segments (4 coils each), allowing configurable layouts. The TotalBody 400 has 4 coils in every segment for full-body coverage.

Technical Data

• Output: 400 Gauss total power
• Power supply: 220 V
• Frequency: adjustable between 5 and 200 Hz (modifiable only during programming)
• Duty cycle adjustable: 5–50 %
• 41 preset programs
• Operates on mains, battery, and car charger—battery, car adapter, and power adapter included
• Display: large, bright graphic screen showing all parameters
• Device class: II A
• Compliance: conforms to 93/42/EEC and 2007/47/EC directives
