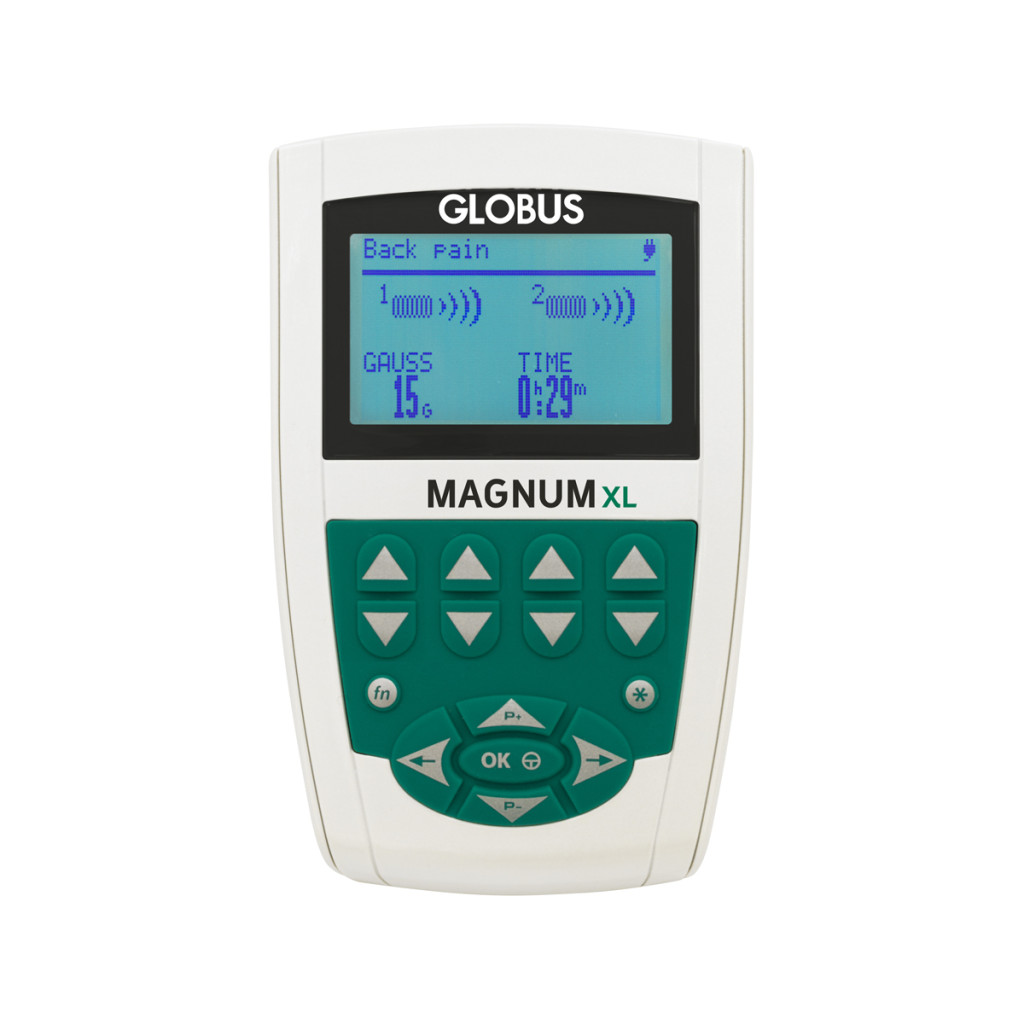

Magnum XL Magnetotherapy Device

Optional accessories

Various magnetic coils are available for Magnum devices, each suitable for different treatments. Choose based on the area and condition being treated.

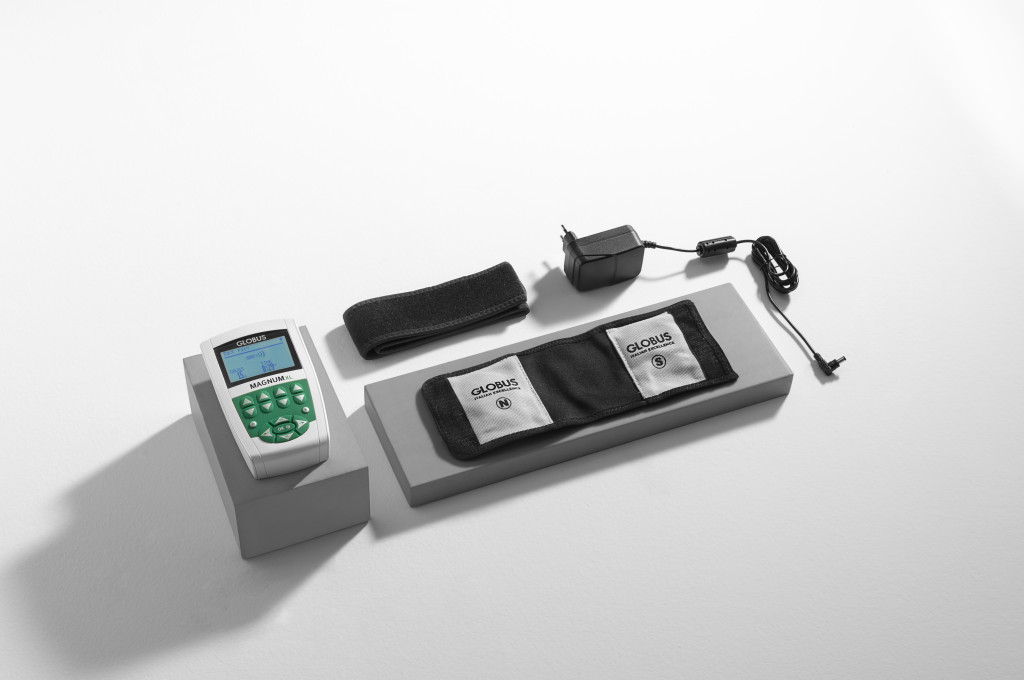

Magnum flexible magnetic coil, standard

The device price includes one (two for some models) 30×10 cm flexible coil. It contains two coils with opposite polarities, ideal for treating fractures and inflammations of the arm and shin bones, joints like wrist, elbow, shoulder, ankle, knee and hip. Use it like a blood pressure cuff, wrapping around the area so the coils lie opposite each other on the bone or joint, and their magnetic fields connect.

Magnum flexible magnetic coil, large

This optional 40×15 cm flexible coil contains four coils with the same polarity, suitable for treating spine, pelvis and hip, or long femoral fractures. It is used more by laying it on the area rather than wrapping. It provides a wide but shallow magnetic field.

Magnum Soft4 mat

This applicator contains four coils in a soft foam cover. The smooth side is the south (S) pole; the north (N) pole is on the opposite side near the strap slot. The 25×25 cm size is ideal for back, waist, pelvis and hip areas, as well as conditions like tennis elbow, epicondylitis and carpal tunnel syndrome when placed under the affected area, for instance while working at a desk.

Magnum Pocket Pro magnetic coil

This applicator contains two coils in a zippered, removable textile cover clearly marked with S and N poles. Suitable for treatment of smaller areas. Multiple Pocket Pros can be used side-by-side with appropriate polarities for larger areas or oppositely for fracture/joint treatment. Can be fixed with Velcro straps.

Magnum therapy mats

Three types are available.

MAT 100 mat

Measures 70×45 cm, with four coils embedded in memory foam with fabric cover, usable on chair or sofa for thigh, hip, pelvis, waist and shoulder-neck treatments. Ideal for long sessions.

TotalBody 200 and 400 therapy mats

These large mats are designed for long, several-hour treatments covering the whole body or large areas, e.g. osteoporosis, polyarthritis, spine problems, allergy, immune strengthening and circulation improvement.

The TotalBody mat is 70×180 cm, can be used under bedding for overnight use, composed of four segments.

TotalBody 200 contains coils in only 2 of the 4 segments (4 coils each), allowing configurable arrangements.

TotalBody 400 contains 4 coils in every segment for full body coverage.

Technical data

• Power: Total output 280 Gauss
• Menu languages: Hungarian, English, Spanish, French, German, Italian
• Power supply: 220 V mains connection
• Frequency: 5–200 Hz adjustable (parameters can only be changed during programming)
• Cycle time adjustable: 5–50 %
• 26 preset programs
• Mains and battery operation – battery not included, available separately
• Display: Large, clear graphical display showing all parameters
• Medical device class: II A
• Compliance: Complies with directives 93/42/EEC and 2007/47/EC
