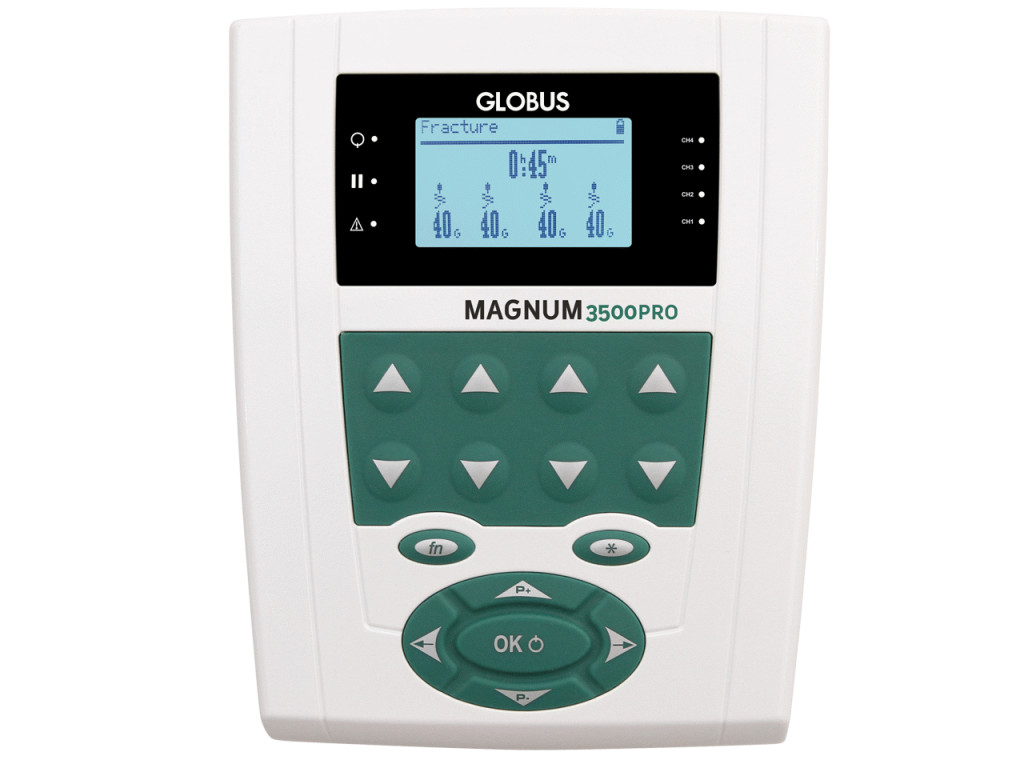

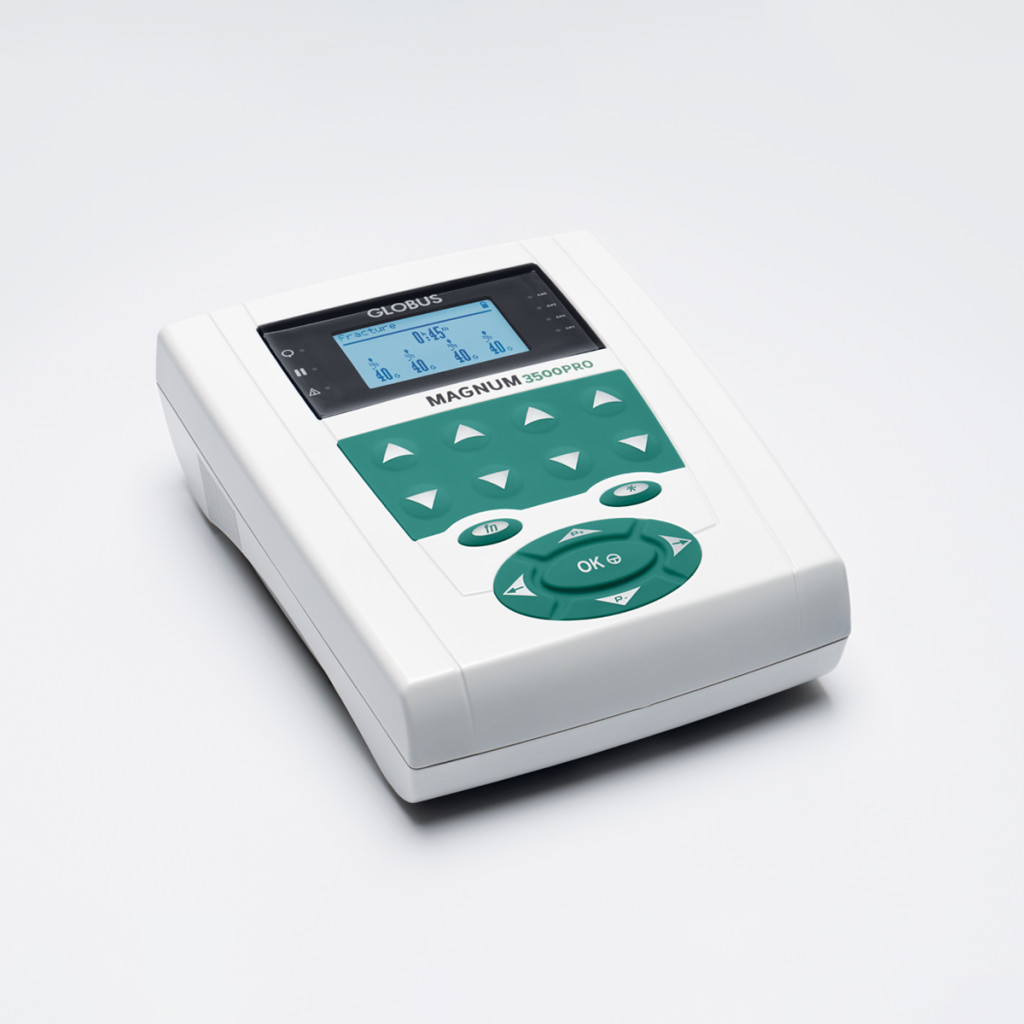

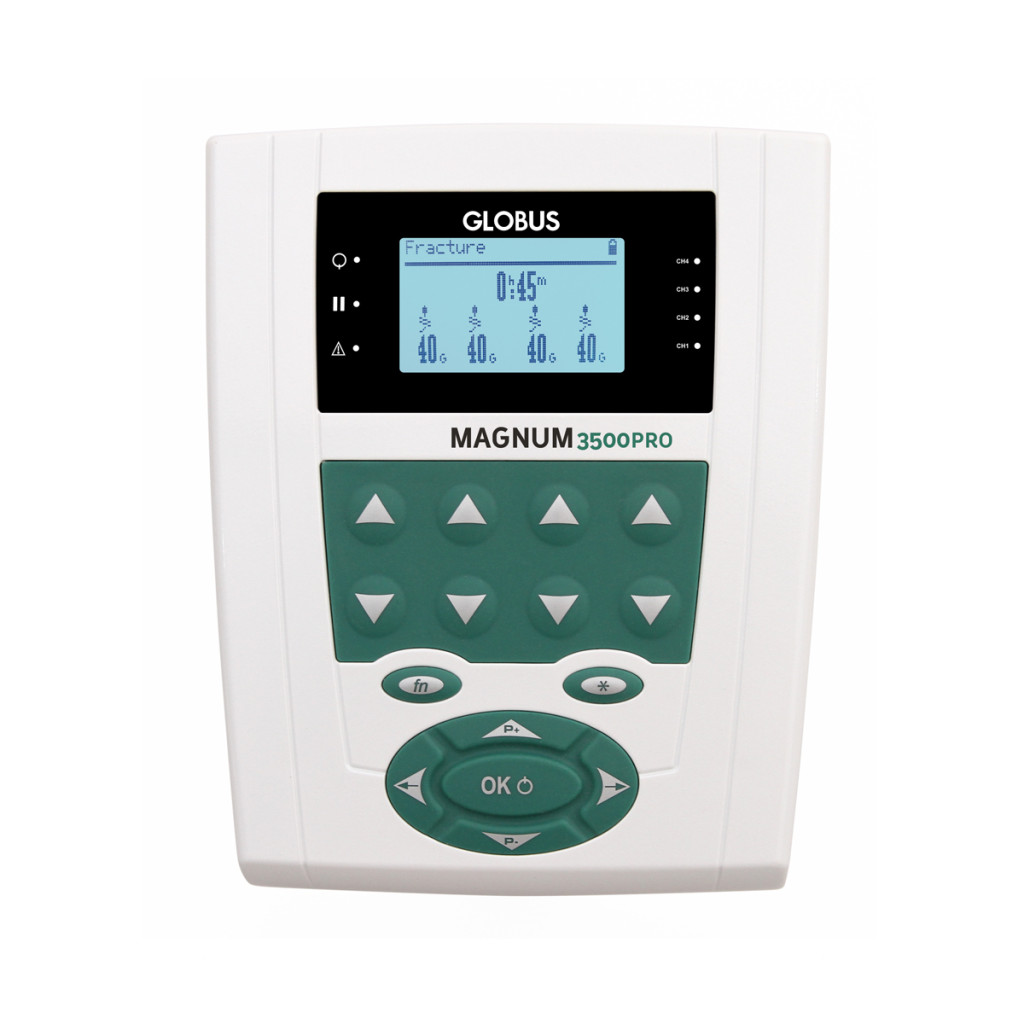

Magnum 3500 Pro Magnetotherapy Device

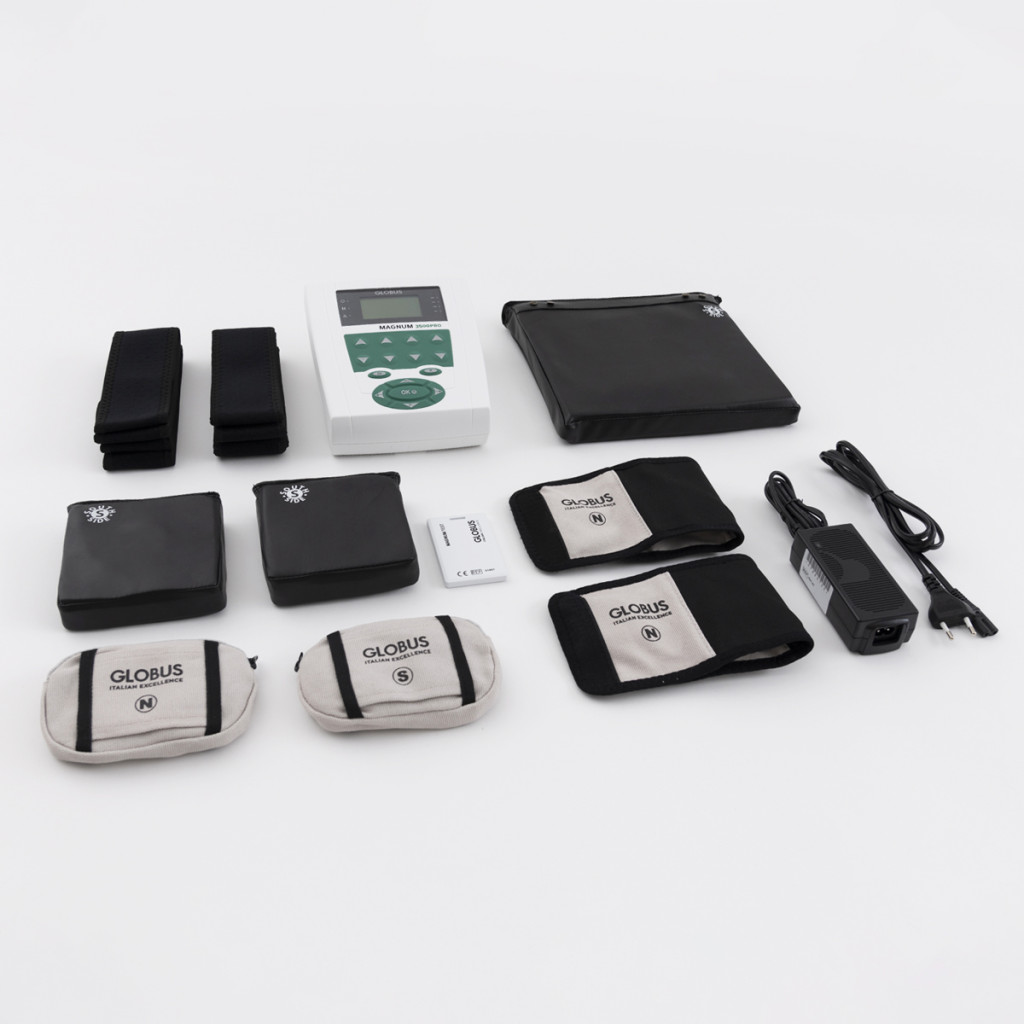

Optional accessories

Various magnetic coils are available for Magnum devices, each suitable for different treatments. Choose based on the treatment area and condition.

Magnum flexible magnetic coil, standard

The device price includes one (two for some models) 30x10 cm flexible coil. It contains two coils with opposite polarities, ideal for treating fractures and inflammations of arm and calf bones and joints such as wrist, elbow, shoulder, ankle, knee, and hip. It is used like a blood pressure cuff, wrapping around the area so the coils are positioned on opposite sides of the bone or joint, connecting their magnetic fields.

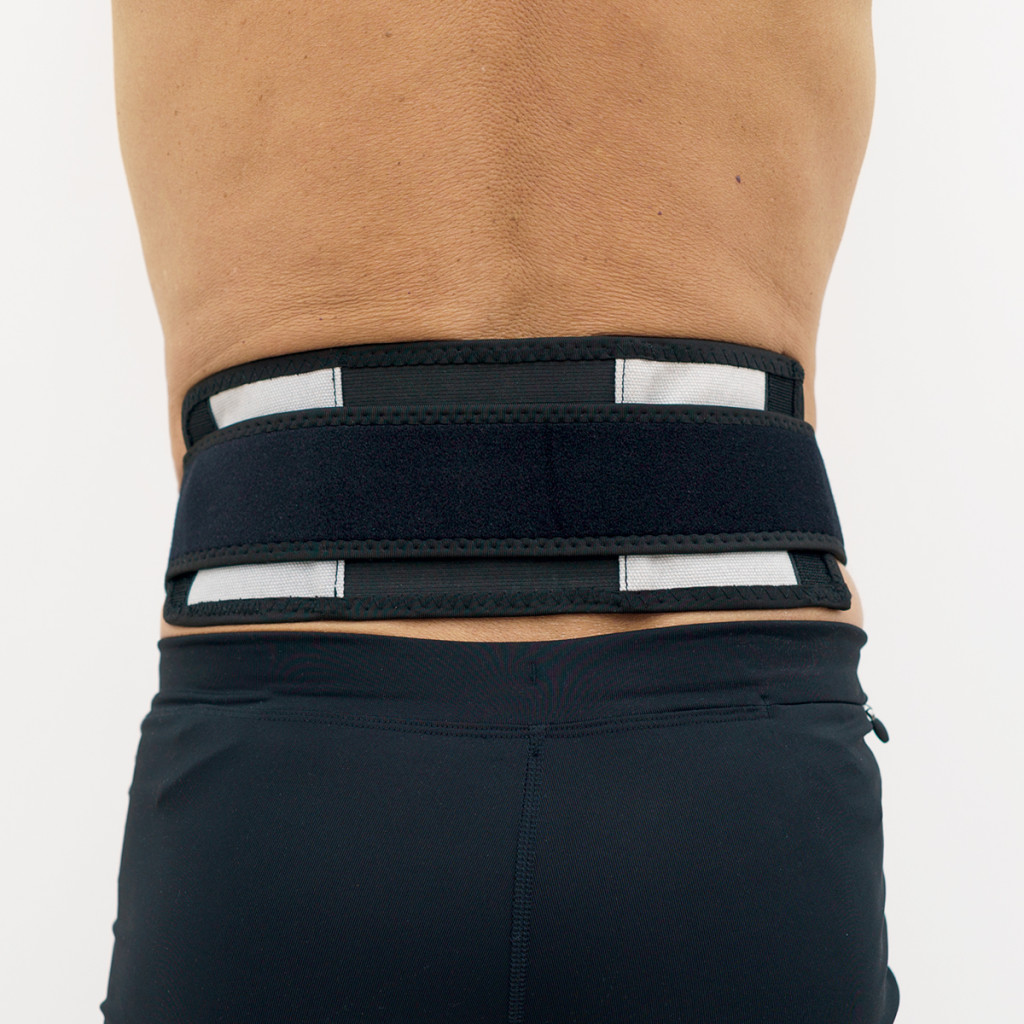

Magnum flexible magnetic coil, large

This optional 40x15 cm flexible coil contains four coils with the same polarity, suitable for treating the spine, pelvis, and hip or longitudinal femur fractures. It is used laid on the treatment area rather than wrapped. Provides a wide but shallow magnetic field.

Magnum Soft4 mat

This applicator contains four coils in a soft foam cover. The smooth side is the south (S) pole; the north (N) pole is on the opposite side near the strap opening. The 25x25 cm size is ideal for back, waist, pelvis, and hip areas or conditions like tennis elbow, epicondylitis, and carpal tunnel syndrome by placing it under the treated area, e.g., while working at a desk.

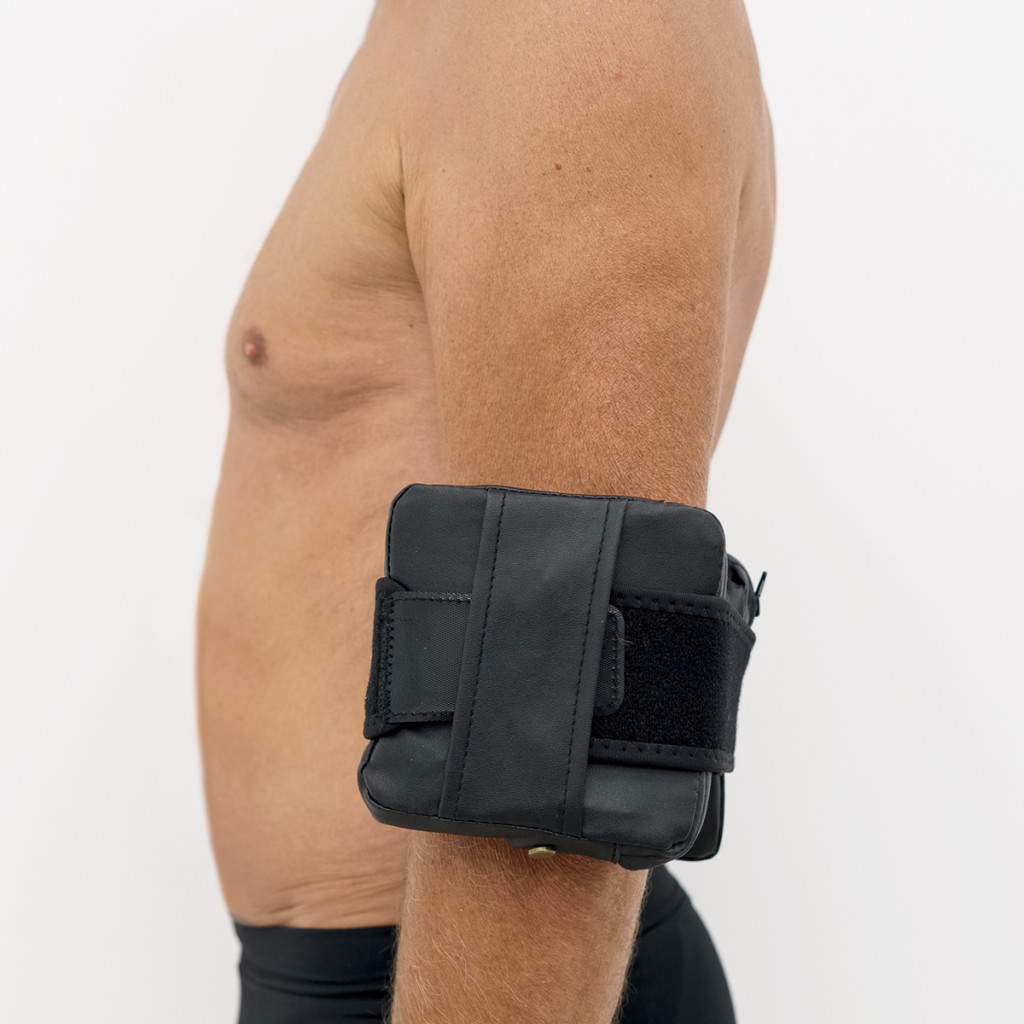

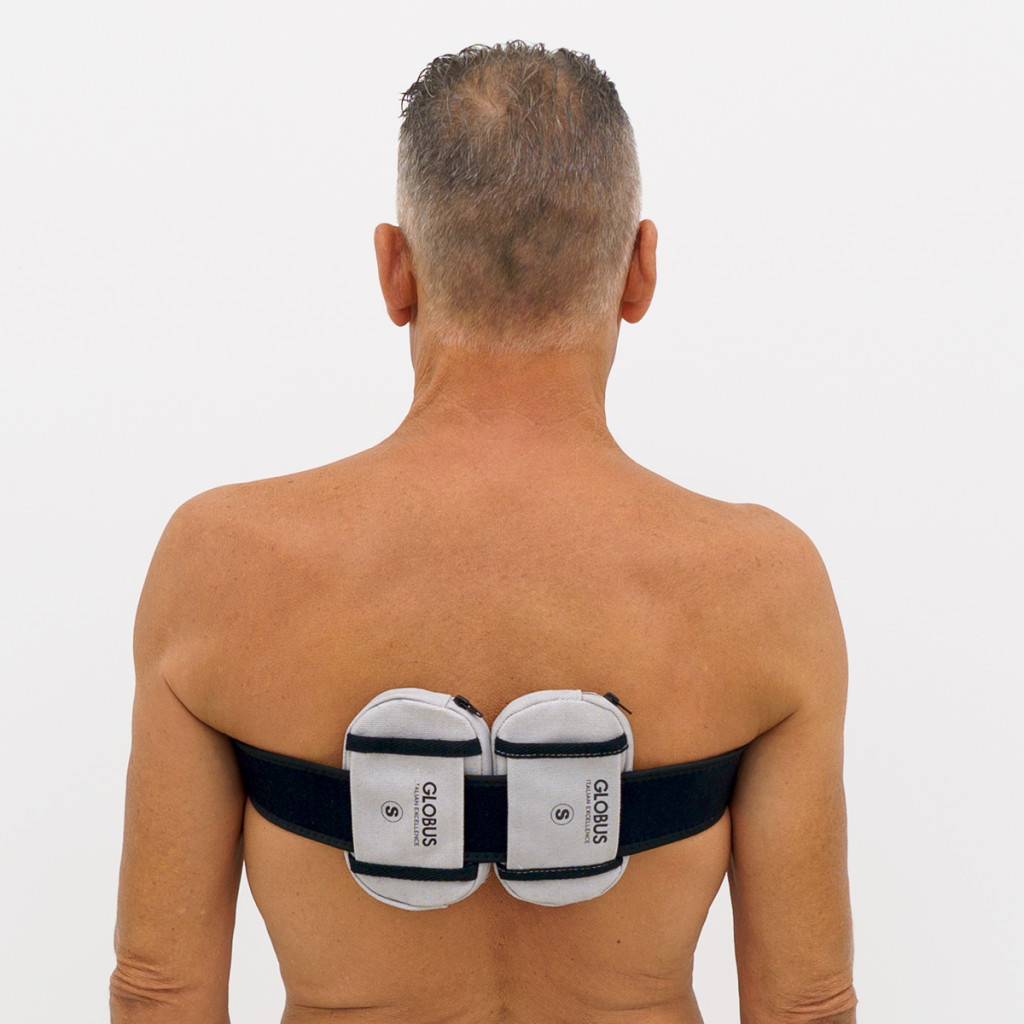

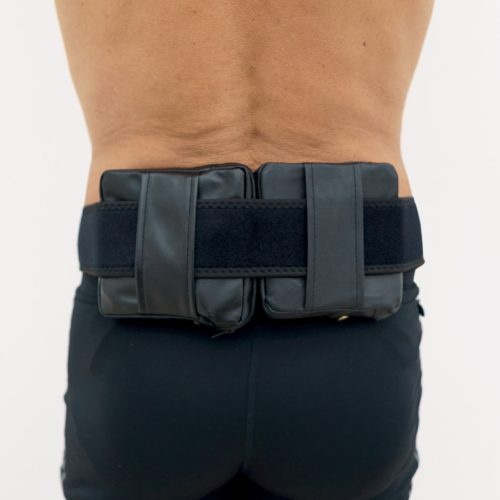

Magnum Pocket Pro magnetic coil

This applicator contains two coils in a zippered removable fabric cover with clearly marked S and N poles. Suitable for treating smaller areas. Multiple Pocket Pros can be used side by side with appropriate polarity for larger areas or opposing sides for fracture/joint treatment. Fixed with Velcro straps.

Magnum therapy mats

Three types are available.

MAT 100 mat

Dimensions 70x45 cm, with four coils embedded in memory foam and fabric cover, usable placed on a chair or sofa for thigh, hip, pelvis, back, and shoulder-neck treatments. Ideal for long sessions.

TotalBody 200 and 400 therapy mats

These large mats are designed for long, several-hour treatments covering the whole body or large areas, such as osteoporosis, polyarthritis, spine problems, allergy, immune strengthening, and circulation improvement.

The TotalBody mat is 70x180 cm and can be placed under bedding for overnight use, consisting of four segments.

The TotalBody 200 contains coils in only 2 of the 4 segments (each with 4 coils), allowing configurable arrangement.

The TotalBody 400 has 4 coils in every segment for full-body coverage.

Technical data

• Output power: 4 independent channels, each 200 Gauss, total 800 Gauss output
• Menu languages: Hungarian, English, Spanish, French, German, Italian
• 2+2 mode
• Power supply: 220 V
• Frequency: 5–200 Hz (adjustable, programmable only)
• Duty cycle: 5–50 %
• 70 preset programs
• 10 free program slots
• Mains and battery operation (battery optional)
• Large, bright graphical display
• Device class: IIa
• Conformity: Directive 93/42/EEC and 2007/47/EC
