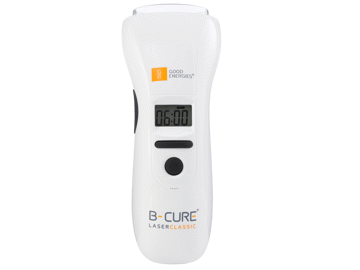

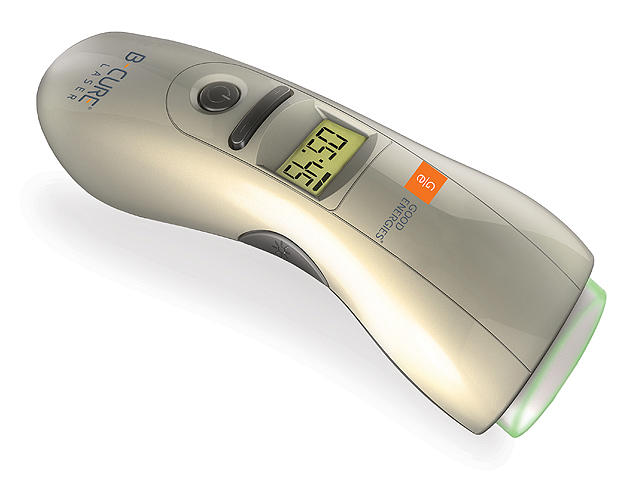

B-Cure Laser Classic softlaser /LLLT device
B-Cure Laser is based on LLLT (Low Level Laser Therapy) technology, also known as Cold Laser, Soft Laser or Phototherapy Laser. The device emits a low-level laser beam in the range of 1-1000mW. It is a coherent monochromatic beam of light, with one defined wavelength, that moves in one phase and in one direction.
Being an LLLT based device, B-Cure Laser exerts photochemical effects rather than thermal effects on living tissues. It works on the skin surface, while simultaneously penetrating deeply through the skin tissue with no heating effect and without damaging the skin.
Biostimulation: When laser light is absorbed by a living tissue, it triggers biological reactions in the cells. A variety of endogenous chemical substances are produced in the cells and carried by blood and lymphatic flow to other parts of the system. Hence, the effects of cold laser light may be more than only local, and can also achieve wide systemic effects.
No protective goggles needed – Due to its innovative electro-optic mechanism the wide energy distribution enables use of the B-Cure Laser device, without requiring protective goggles for eye-safety.
A new patented category in LLLT – The patented laser beam covers a coherent area of 4.5 cm² allowing the free flow of the laser beam.
Therapeutic effects of low level laser light irradiation include the following:
- Increased production of ATP (Adenosine TriPhosphate)
- Releases endorphins that relieve pain
- Increased cellular metabolism
- Increased collagen production
- Increased enzyme production
- Better blood flow
- Better lymphatic flow and drainage
The main and the most important effect of laser light on cells, is the accelerated production of ATP (Adenosine TriPhosphate). This process is called ‘biostimulation’. ATP molecules are found in the cells of all living things. In animal and human systems, Adenosine TriPhosphate is synthesized in small cellular organelles called mitochondria. In the mitochondria, the primary cellular energy source — the ATP — is produced by combining oxygen with sugar derived from food. ATP can be described as the ‘energy carrier’ or the ‘energy shuttle’. It is capable of harnessing the chemical energy generated from the breakdown of the foodstuffs and transporting it across cellular membranes for conversion into ‘fuel’ that is required for normal body function. Adenosine TriPhosphate is often referred to as the ‘energy currency of life’. If a person has insufficient levels of ATP available, the energy cannot reach the tissues. This can lead to a variety of health problems, including susceptibility to infectious diseases, poor wound healing, inflammation and swelling. B-Cure Laser delivers the energy of the light into living tissues, a process also referred to as ‘phototherapy’. This increases the ATP and thus shuttling of more energy and nutrients around the body, for healthy metabolism, improved immunity and correctly functioning organs. The B-Cure Laser devices are routinely used by individuals, as well as medical professionals and therapists. They are deisgned to relieve pain, reduce inflammation, speed up healing, accelerate tissue regeneration, minimize scar tissue formation and improve mobility and recovery after trauma or surgery.
Impact on pain
In many cases, unremitting pain is a result of pressure on the nerve fibers. This pressure causes swelling and inflammation around the affected area. B-Cure Laser enlarges the blood and lymphatic vessels facilitating the filtering and cleansing of the inflamed area and the edema, thus releasing the pressure on the nerve. Reduction of the pressure leads to a decreased level of pain and allows the blood and lymphatic vessels to pump the energy needed to heal the affected area. B-Cure Laser is effective and safe and can be applied with confidence at home. B-Cure Laser is "side-effect free" and can be used on its own as a standalone therapy modality or in conjunction with other conventional therapies, such as physiotherapy. B-Cure Laser is effective and safe and can be applied with confidence at home. B-Cure Laser is “side-effect free” and can be used on its own as a standalone therapy modality or in conjunction with other conventional therapies, such as physiotherapy.
B-Cure Laser Classic Technical Details
- GaALAs Solid state laser diode
- Maximum power 250mW max.
- Energy: 3.75 Joule/min / 0,93 J/cm2/min
- Wave length 808nM
- Pulse frequency 15kHz
- Laser pulse duration: 17μs
- Diode lifespan: at least 1000 üzemóra
- Laser bean dimension: 45 x 10mm (length x width)
- Bean divergence +/- 3fok
- Battery: 3xAAA NiMH akkumulátor
- Battery lifespan more than 2 hours
- Battery charging time 4-5 hours
- Battery charging current: 300mA max.
- Power Supply: 115-230V
- Device dimensions: 200 x 70 x 40mm
- Weight, inc. batteries: 175gr.
Soft laser treatment points
General soft laser treatment points
Sports Injuries Soft Laser Treatment Points
Sports laser treatment points
For more information, download the brochure "Treatments with B-Cure soft laser"!
Comparing Soft Laser Devices
|B-Cure Laser||Safe Laser 150||B-Cure Laser Sport||B-Cure Laser Pro||Safe Laser 500 Infra|
|Wavelength||808 nm||660 nm||808 nm||808 nm||808 nm|
|Solar divergence||+/- 3°||+/- 3°||+/- 3°|
|Color of light||Infra, invisible||Red, visible||Infra, invisible||Infra, invisible||Infra, invisible|
|Energy emissions||3.75Joule||9.0Joule*||4.5Joule||5.0Joule||30 Joule*|
|energy deviation/cm2/perc||0.83 J/cm2/perc||1.7 J/cm2/perc*||1.0 J/cm2/perc||1.11 J/cm2/perc||9.55 J/cm2/min*|
|Treatment times (for 5 Joule injection)||6 minutes||3 minutes*||5 minutes||4.5 min||2-3 min*|
|Depth of coverage||3-8cm||1-3cm||3-8cm||3-8cm||3-8cm|
|Adjustable treatment time||Yes||No||Yes||Yes||No|
|Subscribe when the required energy is injected||Yes||No||Yes||Yes||No|
to reach area for treatment
|Rheumatoid Arthritis||Suitable||Blind fingers||Suitable||Suitable||Suitable|
|Treating acne-prone skin||Suitable||Suitable||Suitable||Suitable||Suitable|
|Scar reduction, scar pain reduction||Relevant||Relevant||Relevant||Malfeligible||Malfeligible|
*Full battery, maximum values, on skin
Soft laser, soft laser, cold laser, low intensity laser are the same device. Treatment with it charges the cells with energy. Its effect is biostimulation, i.e. laser beam initiates and stimulates healing and regeneration.
How to perform soft laser treatment
- The device is placed on the painful area and held there for 5-8 minutes.
- If the area is larger than the treatment head covers, it should be moved until the whole area is treated.
- Treatments should be repeated 2-4 times a day until complete healing (at least 10 days is recommended).
- For fresh injuries, up to 10 treatments can be performed on the first day.
- Laser treatment should be applied directly to the skin, it is not appropriate to treat through a cloth or bandage!
- If it is not possible to apply directly to the treated area (e.g.
